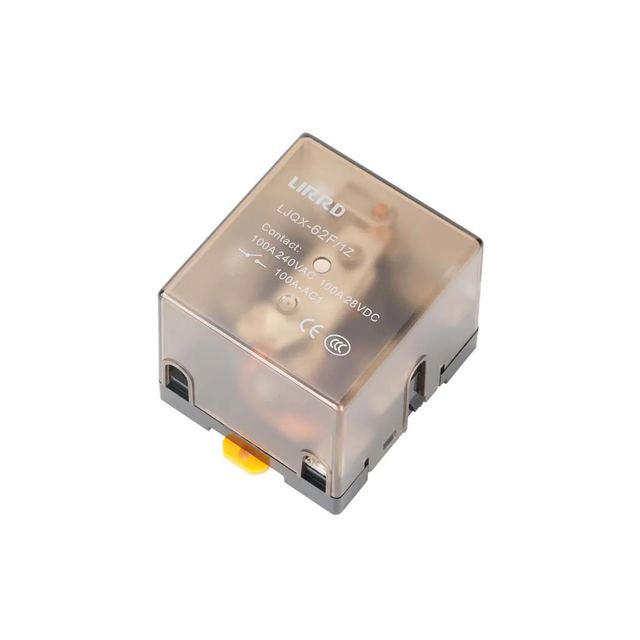

High Power Relay LJQX-62F/1Z
Overview
High Power Relay LJQX-62F/1Z supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Material Silver Alloy; Resistance Performance Of Contactor Capacity 100A/28VDC 100A/250VAC; Ac(Va) ≤10VA; Ac(V) 6~380V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contact Material | Silver Alloy |
|---|---|
| Resistance Performance Of Contactor Capacity | 100A/28VDC 100A/250VAC |
| Ac(Va) | ≤10VA |
| Ac(V) | 6~380V |
| Pick-up Voltage at 23°C | DC≤75% AC≤80% |
| Drop-out Voltage at 23°C | DC≥10% AC≥30% |
| Contacts Pieces | ≥2500VAC 50Hz/1min Leakage Current 1mA |
| Between Coil & Contacts | ≥2500VAC 50Hz/1min Leakage Current 1mA |
| Mechanical | 10 6 Times(Frequency:300 Times/1min) |
| Ambient Temperature | -25°C ~ +55°C |
| Terminal Type | Screw Mounting |
| Same Reference | JQX-62F |
| Protection Type | Close Type |
| 10 5 Times(Frequency | On 1 Time/1S,Off Time/1S) |
| 10 6 Times(Frequency | 300 Times/1min) |
