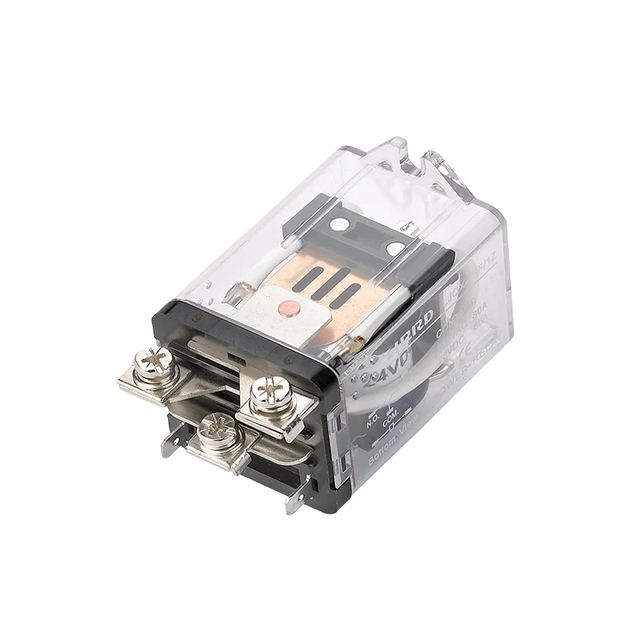

High Power Relay LJQX-59F/1Z

High Power Relay LJQX-59F/1Z

Overview

Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang lists High Power Relay LJQX-59F/1Z under Relays. Contact material Silver Alloy, ac(va) ≤7.5VA and ac(v) 6~380V are among the specifications published.

Technical specifications

Contact MaterialSilver Alloy
Ac(Va)≤7.5VA
Ac(V)6~380V
Pick-up Voltage at 23°CDC≤75% AC≤80%
Drop-out Voltage at 23°CDC≥10% AC≥30%
Contacts Pieces≥2000VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts≥2500VAC 50Hz/1min Leakage Current 1mA
Mechanical10 6 Times(Frequency:300 Times/1min)
Ambient Temperature-25°C ~ +55°C
Terminal TypeScrew Mounting
10 5 Times(FrequencyOn 1 Time/1S,Off Time/1S)
10 6 Times(Frequency300 Times/1min)
