Overview

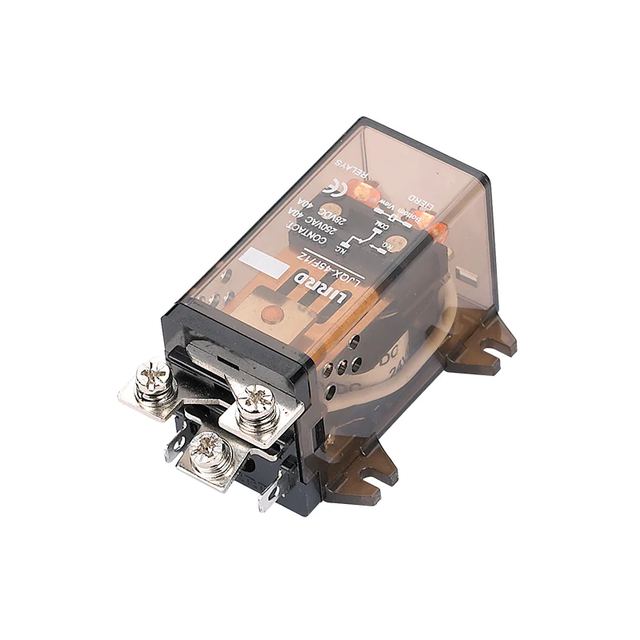

High Power Relay LJQX-45F/1Z supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Form 1Z 1H 1D; Contact Material Silver Alloy; Ac(V) 6~380V; Pick-up Voltage at 23°C DC≤75% AC≤80%. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Form	1Z 1H 1D
Contact Material	Silver Alloy
Ac(V)	6~380V
Pick-up Voltage at 23°C	DC≤75% AC≤80%
Drop-out Voltage at 23°C	DC≥10% AC≥30%
Between Coil & Contacts	≥2500VAC 50Hz/1min Leakage Current 1mA
Mechanical	10^6 Times(Frequency:300 Times/1min)
Ambient Temperature	-25°C ~ +55°C
Terminal Type	Screw Mounting
Protection Type	Close Type
10^5 Times(Frequency	On 1 Time/1S,Off Time/1S)
10^6 Times(Frequency	300 Times/1min)
