Overview

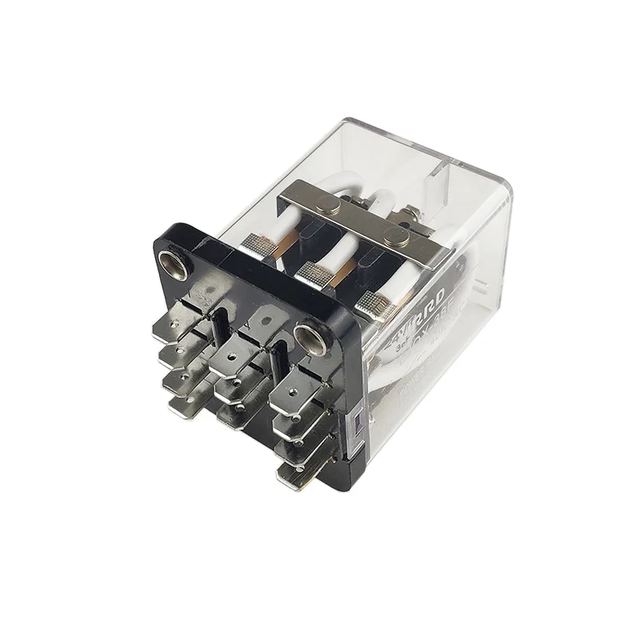

High Power Relay LJQX-38F supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Form 3Z 3H 3D; Contact Material Silver Alloy; Resistance Performance Of Contactor Capacity 30A/40A/28VDC, 30A/40A/250VAC; Ac(Va) <2.5VA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Form	3Z 3H 3D
Contact Material	Silver Alloy
Resistance Performance Of Contactor Capacity	30A/40A/28VDC, 30A/40A/250VAC
Ac(Va)	<2.5VA
Ac(V)	6~380V
Pick-up Voltage at 23°C	DC≤75% AC≤80%
Drop-out Voltage at 23°C	DC≥10% AC≥30%
Contacts Pieces	≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts	≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical	10^6 Times(Frequency:300 Times/1min)
Ambient Temperature	-25°C ~ +55°C
Suitable Socket	38F11A
10^5 Times(Frequency	On 1 Time/1S,Off 1 Time/1S)
10^6 Times(Frequency	300 Times/1min)
