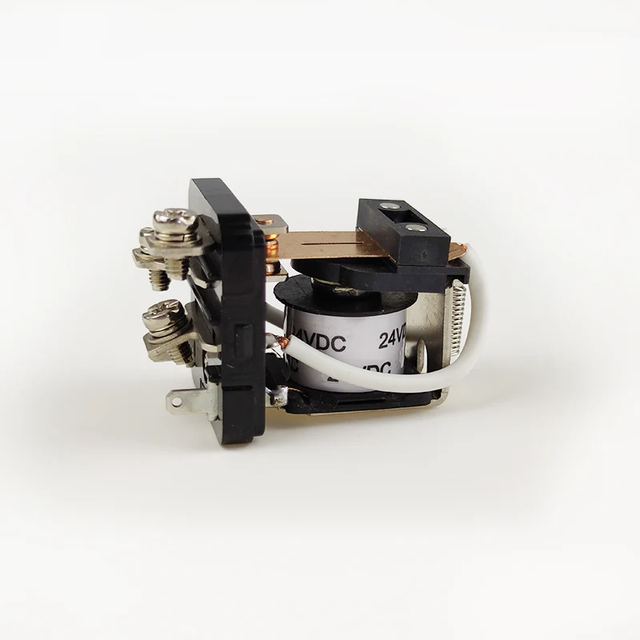

High Power Relay LJQX-30F/1Z

High Power Relay LJQX-30F/1Z

Overview

Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang lists High Power Relay LJQX-30F/1Z under Relays. Published figures include contact material Silver Alloy, ac(va) <5.5VA and ac(v) 6~380V.

Technical specifications

Contact MaterialSilver Alloy
Resistance Performance Of Contactor Capacity40A/28VDC, 40A/250VAC
Ac(Va)<5.5VA
Ac(V)6~380V
Pick-up Voltage at 23°CDC≤75% AC≤80%
Drop-out Voltage at 23°CDC≥10% AC≥30%
Contacts Pieces≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical10^6 Times(Frequency:300 Times/1min)
Ambient Temperature-25°C ~ +55°C
10^5 Times(FrequencyOn 1 Time/1S,Off 1 Time/1S)
10^6 Times(Frequency300 Times/1min)
