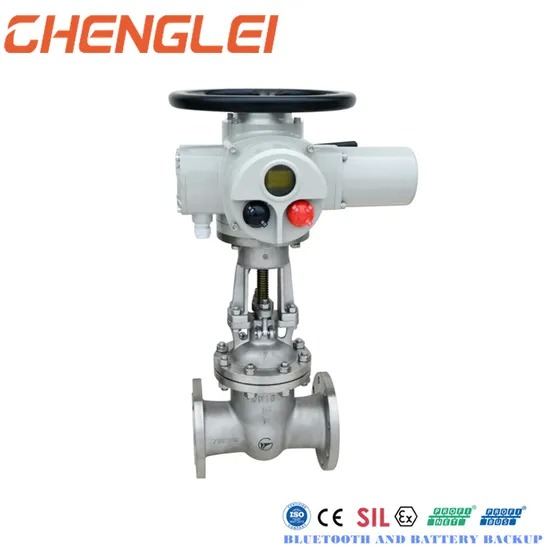

High Power Electric Valve Actuator with ISO5210 Thrust Flange JB2920 Torque Type and IP65/IP67/IP68 Protection
Overview
High Power Electric Valve Actuator with ISO5210 Thrust Flange JB2920 Torque Type and IP65/IP67/IP68 Protection supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Power Source Electric Power; Connection Flange; Material Aluminum Alloy; Thermal Protection Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Source | Electric Power |
|---|---|
| Connection | Flange |
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Speed | 9r/min,18r/min,24r/min,36r/min/48r/min |
| Control Method | On-off Or Modulating.4-20mA |
| Protection Grade | IP65/IP67/IP68 |
| Speed options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control methods | On-off or modulating (4-20mA) |
| Motor duty | Short time (S2 10min/15min/30min) or continuous (S1/S3/S4/S6 24%/40%) |
| Insulation level | F level |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Operating temperature | -20°C to +60°C (special orders -60°C to +70°C) |
| Relative humidity | ≤95% at +25°C |
| Anti-corrosion coating | electrostatic powder spraying |
