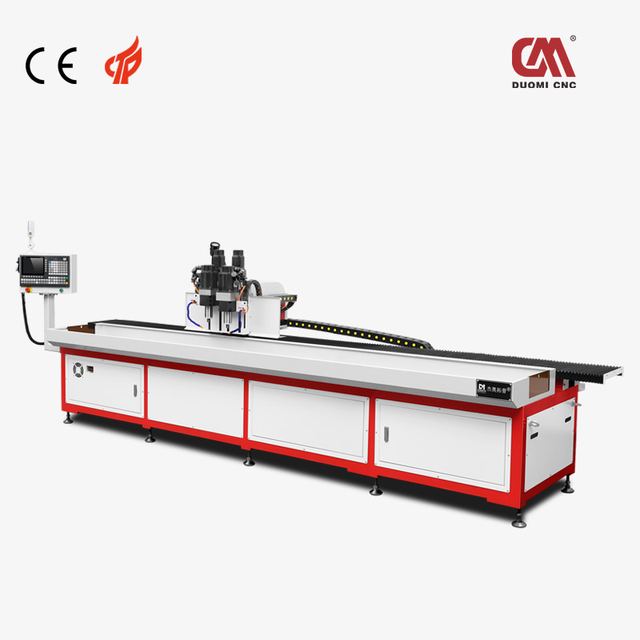

High-Efficiency CNC Drill and Tap Machine
Model DNC-3030DT
Overview
High-Efficiency CNC Drill and Tap Machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-3030DT; XYZ three-axis machining stroke X3000mm Y300mm Z200mm; Spindle taper hole ER20; Spindle power 0.55~3.0KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-3030DT |
|---|---|
| XYZ three-axis machining stroke | X3000mm Y300mm Z200mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~16mm |
| Tapping diameter range | M2~M14 |
| Chamfer range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 2000*280mm |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1600KG |
| Floor space | 4500*1500*1700mm |
| Spindle speed | 1000-24000 rpm. |
| Drilling diameter range | M2 ~ M14. |
