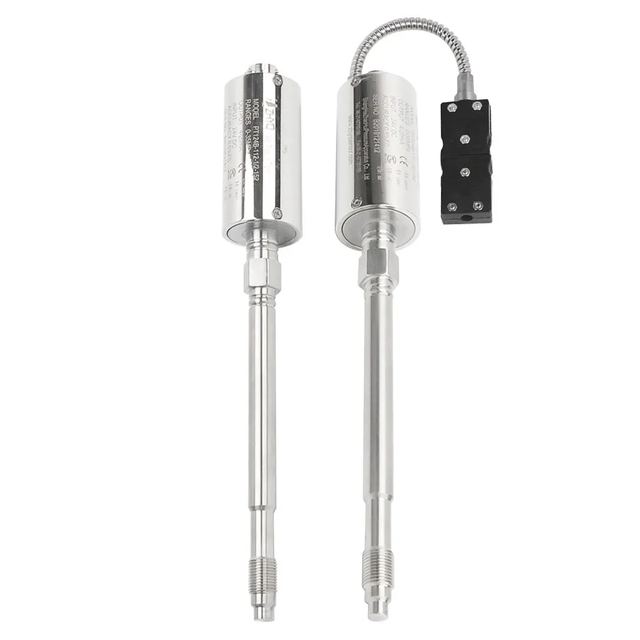

High Accruacy Melt Pressue Transmitter
Model PT124B-112/112T
Overview
High Accruacy Melt Pressue Transmitter supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Pressure range 0~5MPa~200MPa; Overload 150%FS; Singal output 4-20mA ; 0-10V ; 0-5V; Power supply 24 ( 12~36V ) DC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pressure range | 0~5MPa~200MPa |
|---|---|
| Overload | 150%FS |
| Singal output | 4-20mA ; 0-10V ; 0-5V |
| Power supply | 24 ( 12~36V ) DC |
| Internal filling medium | Mercury |
| Wetted material | Stainless Steel Coated with 15-5PH |
| Standard cable | 5000mm |
| Optional cables | 1000 ; 3000 ; 8000 ; 10000mm |
| Operating temperature | Max 400℃ |
| Protection grade | IP65 |
| Insulation resistance | 100MΩ / 250V |
| Zero point adjustment | Support |
| Full scale adjustment | Support |
| Electrical Connection | 6PIN |
| Temperature measuring element | J 、 K 、 E 、 PT100(optional) |
