Overview

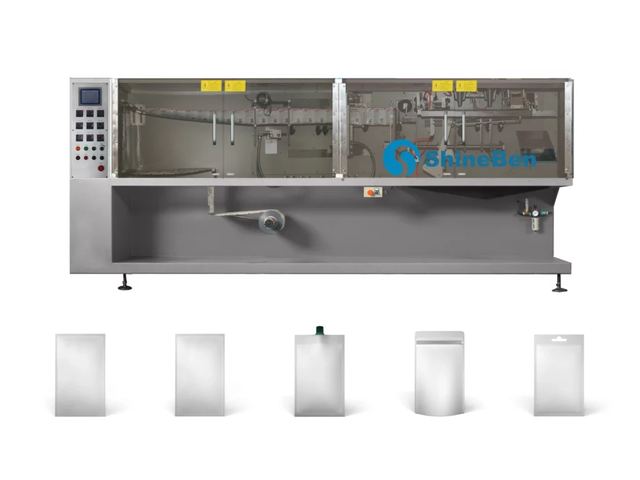

HFFS Flatpack Packing Machine SBMHS-110 supplied by Shineben Machinery Co., Ltd. Listed under Packaging. Key published specifications: Sbmhs-110Z SBMHS-110C; Pouch Type Flat Pouch, Shaped, Hanging Hole; Min Pouch Size(W × L) 50mm×50mm; Max Pouch Size(W × L) 110mm × 130mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Sbmhs-110Z	SBMHS-110C
Pouch Type	Flat Pouch, Shaped, Hanging Hole
Min Pouch Size(W × L)	50mm×50mm
Max Pouch Size(W × L)	110mm × 130mm
Max Volume	60ml
Standard Functions	Date Printing, Output Conveyor
Air Consumption	250NL/min
Ambient Temperature	-10°C~55°C
Relative Humidity	Below 85%(Non condensation)
Power Consumption	3.5 kw
Supply Voltage	220V, 3 Phase, 50/60Hz
Dimension(L × W × H)	2850mm × 940mm × 1400mm
Weight	800 kg
