Overview

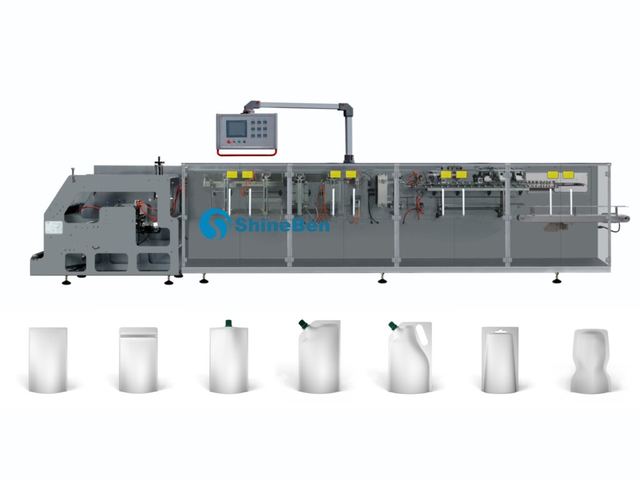

HFFS Doypack Packing Machine SBMHD-180S supplied by Shineben Machinery Co., Ltd. Listed under Packaging. Key published specifications: Sbmhd-180Sz SBMHD-180SC; Pouch Type Doypack, Shaped, Hanging Hole; Doypack, Shaped with Zipper, Hanging Hole Doypack, Shaped, Spout Pack; Min Pouch Size 90mm×110mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Sbmhd-180Sz	SBMHD-180SC
Pouch Type	Doypack, Shaped, Hanging Hole
Doypack, Shaped with Zipper, Hanging Hole	Doypack, Shaped, Spout Pack
Min Pouch Size	90mm×110mm
Max Pouch Size	180mm × 250mm
Max Volume	1000ml
Standard Functions	Date Printing, Output Conveyor
Air Consumption	300NL/min
Ambient Temperature	-10°C~55°C
Relative Humidity	Below 85%(Non condensation)
Power Consumption	8 kw
Supply Voltage	220V, 3 Phase, 50/60Hz
Dimension(L × W × H)	6000mm × 1100mm × 1500mm
Weight	2000 kg
