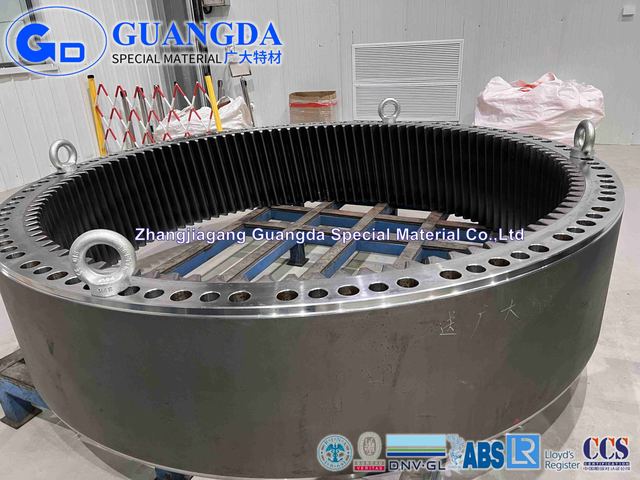

Heavy Duty Forging Steel Forged Ring Gear Precision Forged Gears
Overview
Heavy Duty Forging Steel Forged Ring Gear Precision Forged Gears supplied by Zhangjiagang Guangda Special Material Co., Ltd. Key published specifications: Max diameter 5000mm; Annular Capacity of the internal gears 10000pcs; Shaping Tooth grinding; Max O.D. 5000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Max diameter | 5000mm |
|---|---|
| Annular Capacity of the internal gears | 10000pcs |
| Shaping | Tooth grinding |
| Max O.D. | 5000mm |
| Max Face Width | 2200mm |
| Max module | M35 |
| AGMA leval/DIN leval | DIN3962 CLASS 8 |
| Din3962 Class 8 | DIN3962 CLASS 4 |
| Tooth Surface finishing | Ra3.2 |
| Rail Vehicles | Oil and gas |
| Mining | Cement |
| Power Generation | Turbo |
| Hydro power | Wind Energy |
| Metallurgy | Sugar |
| Marine and shipbuiding | Machine tools |
| Recycling and processing plants | Rubber and plastics |
| Material | 18CrNiMo7-6,17CrNiMo6,42CrMo4 Etc |
| Diameter | Max 5000mm |
| Type | Forging |
