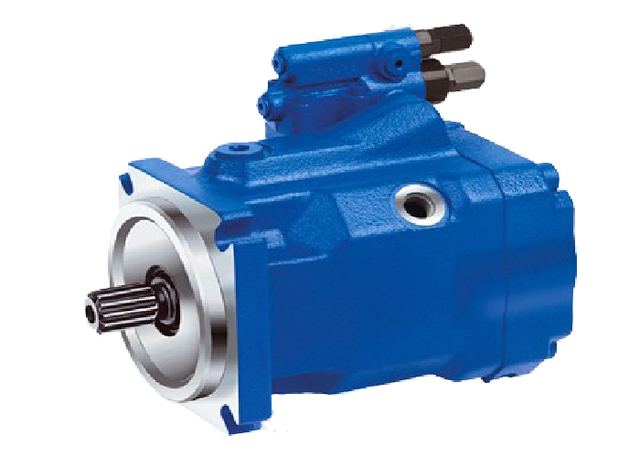

Heavy Duty Axial Hydraulic Pump Heavy Machinery 250-315 Bar
Overview
Heavy Duty Axial Hydraulic Pump Heavy Machinery 250-315 Bar supplied by Shandong Keystone Hydraulic Co.,Ltd. Listed under Piston Pumps. Key published specifications: Model HA10V(S)0/5X; Power Source Hydraulic; Application Heavy Machinery; Type Piston Pump. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | HA10V(S)0/5X |
|---|---|
| Power Source | Hydraulic |
| Application | Heavy Machinery |
| Type | Piston Pump |
| Inlet/Outlet Connection | Flange/Thread |
| Power | Ne =1500 Rpm |
| Displacement (Vg max) | 10.5 – 100 ml/rev |
| Nominal Pressure | 250 bar |
| Maximum Pressure | 315 bar |
| Maximum Speed (at Vg max) | 2300 – 3600 rpm (depending on size) |
| Flow at nE = 1500 rpm | 15 – 150 L/min |
| Design Type | Swash-plate variable displacement |
| Certification | SIO9001 |
