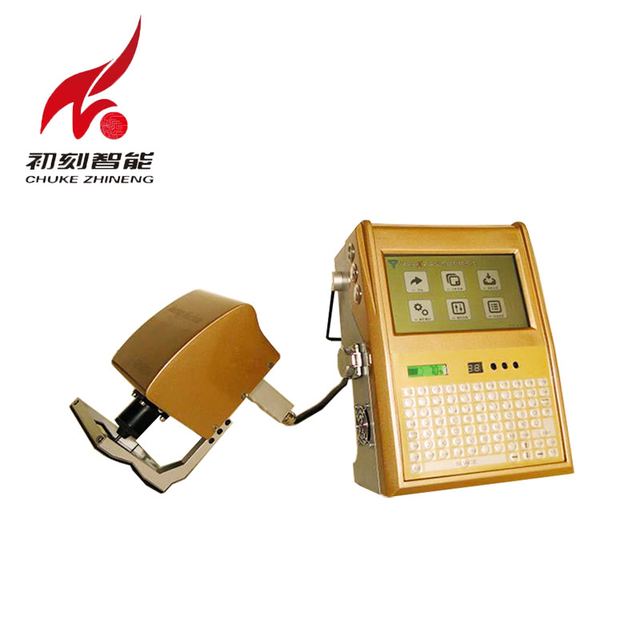

Hand Held Engraving Electric Marking Machine Mark Number Punching On Metal
Model EMK-D01
Overview
Hand Held Engraving Electric Marking Machine Mark Number Punching On Metal supplied by Chongqing Chuke Intelligent Machinery & Equipment Co.,Ltd. Key published specifications: Certification FDA,ISO,CE; Application Engine; Drive Type Electric; Controller Touch Screen. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | FDA,ISO,CE |
|---|---|
| Application | Engine |
| Drive Type | Electric |
| Controller | Touch Screen |
| Software | ThorX6 |
| Marking Area | 40x80mm |
| Marking Materials | Above HRC60 Need Special Stylus |
| Repeat Accuracy | 0.02-0.04mm |
| Power | 300w |
| Marking speed | 3-5 characters / second (2X2) |
| Software application system | LCD touch screen |
| Marking depth | 0.01-1.2mm Adjustable (depending on the material) |
| Height adjustment Range | 10mm |
| Print pin impact frequency | 300 beats / second |
| Working voltage | 110VAC / 220VAC |
| Delviery time | 3-15 working days |
| Type of shipping | Express,air or sea |
| Gross weight | 23KG |
| Warranty time | one year |
