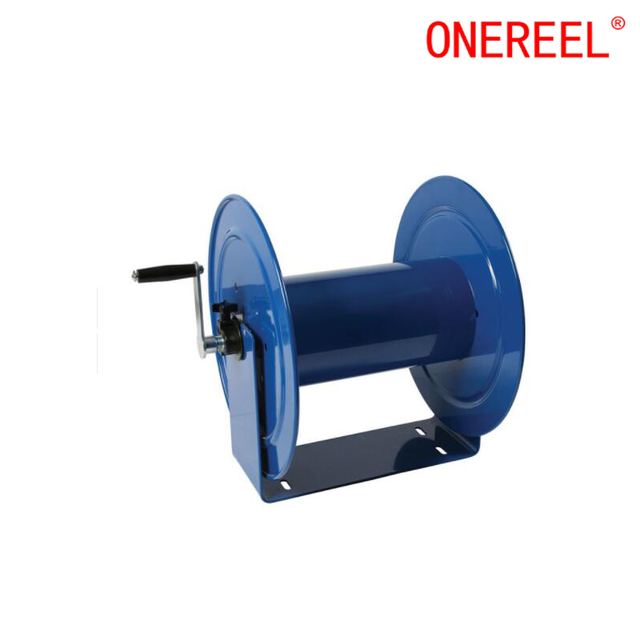

Hand Crank Reel
Model ORS-3/8-1
Overview
Hand Crank Reel supplied by Ningbo Onereel Machine Co., Ltd. Key published specifications: Material Stainless Stee; Mounting Bench, Floor, Truck, Wall; Overall Height 13 in; Swivel Inlet Size 3/8 in. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Stainless Stee |
|---|---|
| Mounting | Bench, Floor, Truck, Wall |
| Overall Height | 13 in |
| Swivel Inlet Size | 3/8 in |
| Standards | CE |
| Swivel Inlet Thread Size | 3/8 in |
| Maximum Operating Pressure | 4,000 psi |
| Maximum Operating Temperature | 225 Degrees F |
| Mount Hole Diameter | 7/16 in |
| Mount Base Width | 9 1/2 in |
| Bearing Construction | EPDM |
| Weight | 19 lb |
| Mount Base Height | 6 in |
| Hose Capacity | 100 ft (3/8 in I.D.) |
| Reel Width | 8 in |
| Handle Length | 3 1/2 in |
| Mounting Hole Center to Center Width | 5 1/2 in |
| Minimum Operating Temperature | -40 Degrees F |
