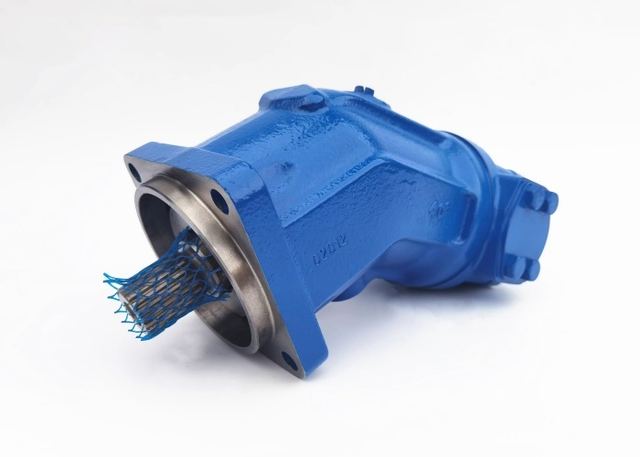

HA2FM Axial Piston Motor Construction Equipment Pumps For Excavator Travel
Model HA2FM Series Axial Piston Motor
Overview
HA2FM Axial Piston Motor Construction Equipment Pumps For Excavator Travel supplied by Shandong Keystone Hydraulic Co.,Ltd. Listed under Piston Pumps. Key published specifications: Size 5 To 1000; Nominal Pressure 400 Bar; Max. Pressure 450 Bar; Power Source Hydraulic. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Size | 5 To 1000 |
|---|---|
| Nominal Pressure | 400 Bar |
| Max. Pressure | 450 Bar |
| Power Source | Hydraulic |
| Type | Piston Pump |
| Application | Excavator Travel Drive Only |
| Maximum Pressure | 450 bar |
| Max. Speed | Up to 11,000 rpm (size-dependent) |
| Torque @ 400 bar | 66 Nm – 1273 Nm (size-dependent) |
| Weight | 2.5 kg – 73 kg (size-dependent) |
| Certification | SIO9001 |
