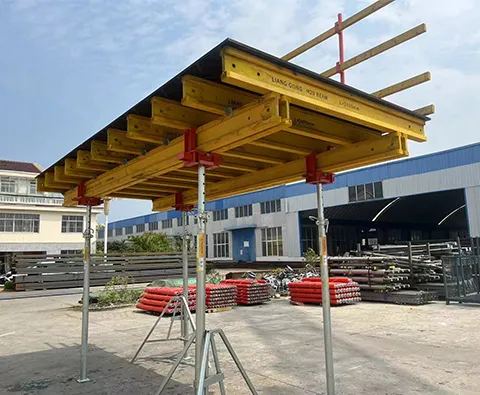

H20 timber beam table formwork
Overview
H20 timber beam table formwork, listed under Formwork by YANCHENG LIANGGONG FORMWORK CO., LTD in Yancheng, Jiangsu. Published figures include system type H20 Timber Slab Formwork, material H20 Timber beam and standard shoring Heavy duty Steel Prop.
Technical specifications
| System Type | H20 Timber Slab Formwork |
|---|---|
| Material | H20 Timber beam |
| Standard Shoring | Heavy duty Steel Prop |
| Max Perm. Slab Thickness | 1000 mm |
| Standard Size | 2.44*4.88 or 3.3*5m |
| Assembly Method | Pre-assembled on site |
| Installation Time | 200 m2/day/set (5 workers) |
| Transportation Method | Trolley or tower crane |
