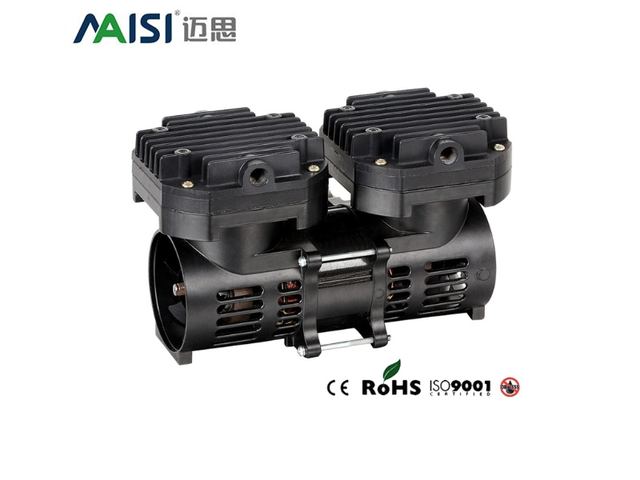

GZ-100A Diaphragm Vacuum Pump
Overview
GZ-100A Diaphragm Vacuum Pump supplied by Maisi. Key published specifications: Head configuration Vacuum; voltage/frequency 110VAC /220VDC; Max No-load flow 70L/min; Max power 100W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Head configuration | Vacuum |
|---|---|
| voltage/frequency | 110VAC /220VDC |
| Max No-load flow | 70L/min |
| Max power | 100W |
| Max current | 0.2A/0.45A |
| Max vacuum | -850mbar |
| Inlet /outlet diameter | G1/4" |
| Speed | 1400RPM |
| Motor type | AC |
| Size | 235x110x150MM |
| Net Weight | 4.3KG |
| Motor insulation class | E |
| Head material | Aluminium die-casting |
| Membrane material | EPDM |
| Valve material | Silicone |
