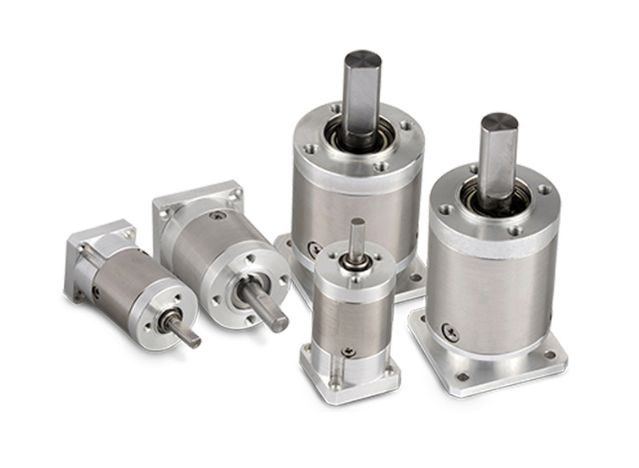

GP Series Micro Planetary Gearbox
Overview
GP Series Micro Planetary Gearbox supplied by Newstart Gear Motion. Key published specifications: Output shaft material steel; Max. continuous input speed 12000 rpm; Bearing at outpu t ball bearing; Max. axial load 5 N. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Output shaft material | steel |
|---|---|
| Max. continuous input speed | 12000 rpm |
| Bearing at outpu t | ball bearing |
| Max. axial load | 5 N |
| Max. force for press fits | 10 N |
| Radial play, 5 mm from flange | ≤0.1 mm |
| Axial play | ≤0.2 mm |
| Recommended temperature range | -20…+100 °C |
| Size Range | 10mm to 52mm |
| High-Precision Steel Gears | Superior to powder metallurgy alternatives |
| Enhanced Load Capacity | Excellent shock and torque handling |
