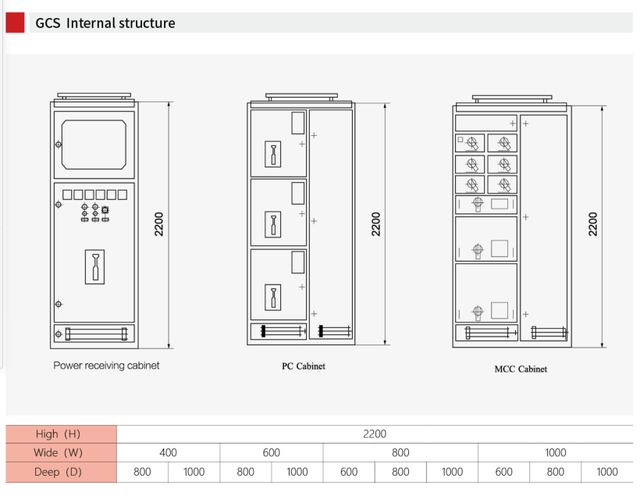

GCS LV mat drawable switchgear
Overview
GCS LV mat drawable switchgear, listed under Switchgear by YUEQING JSM TRANSFORMER CO.LTD in Wenzhou, Zhejiang. Ac 220.380 (400) Linn Frequenz Test Spannung (V/1min), dc 110.220 Main Circuit 2500 and bewäert frequenz (hz) 50 (60) Auxiliary Circuit 1760 are among the specifications published.
Technical specifications
| Ac 380/400, (660) | Bewäertte Kuerzzäitstandsstroum vun der Busbar (kA/1s) 50, 80 |
|---|---|
| Ac 220.380 (400) | Linn Frequenz Test Spannung (V/1min) |
| Dc 110.220 | Main Circuit 2500 |
| Bewäert Frequenz (Hz) 50 (60) | Auxiliary Circuit 1760 |
| Nominell Stroum (A) | Dräi-Phase véier-Drot System ABCN |
| Horizontal Bus Bar ≦4000 | Dräi-Phase Ve-Drot System ABCPE.N |
| (MCC) Vertikal Bus Bar 1000 | Schutzgrad IP30, IP40 |
