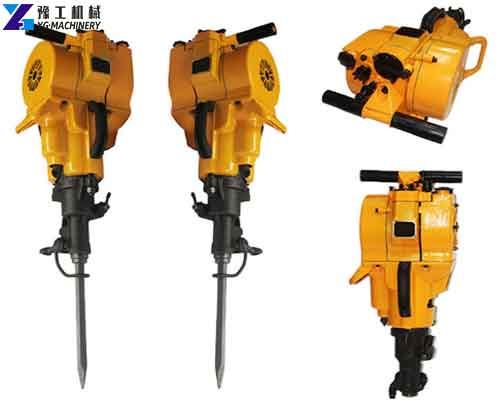

Gasoline Rock Drill
Model YN27C
Overview
Gasoline Rock Drill supplied by YG Machinery. Listed under Excavators. Key published specifications: Weight 27kg; overall dimension 746*315*229mm; engine single cylinder, air-cooled two-strokes; Cylinder diameter*stroke piston 58*70mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 27kg |
|---|---|
| overall dimension | 746*315*229mm |
| engine | single cylinder, air-cooled two-strokes |
| Cylinder diameter*stroke piston | 58*70mm |
| Rotating speed of the engine | more than 2450r/min |
| displacement of engine | 185cm^3 |
| Drilling speed | more than 2450r/min |
| Max drilling depth | 6M |
| Fuel consumption | 1.2L/min |
| Tank capacity | more than 1:14L |
| end of drill rod dimensions | hexagonal 22*108mm |
| Rotating speed of drill rod | more than 200r/min |
| Clearance of spark plug | 0.5-0.7mm |
