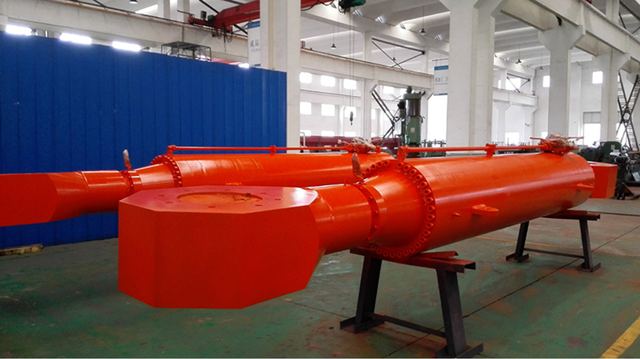

Fully Welded Hydropower Hydraulic Cylinder with 16-45MPa Working Pressure
Overview
Fully Welded Hydropower Hydraulic Cylinder with 16-45MPa Working Pressure supplied by Shaoyang Victor Hydraulic Co.,Ltd. Listed under Other Hydraulic Cylinders. Key published specifications: Bore Diameter Up to 2500mm; Rod Diameter Up to 2000mm; Stroke Length Up to 24,000mm; Piston Rod Material AISI 1045, AISI 4140, AISI 4340, 20MnV6. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Bore Diameter | Up to 2500mm |
|---|---|
| Rod Diameter | Up to 2000mm |
| Stroke Length | Up to 24,000mm |
| Piston Rod Material | AISI 1045, AISI 4140, AISI 4340, 20MnV6 |
| Design Pressure | Up to 40Mpa |
| Seal Kits Type | PARKER, MERKEL, HALLITE, NOK, TRELLEBORG |
| Quality Assurance | 1 year |
| Pressure | 160-450 Bar |
| Application | Hydropower Plant |
| Material | Carbon Steel, Alloy, Stainless Steel |
| Technical data | Parameter Category |
