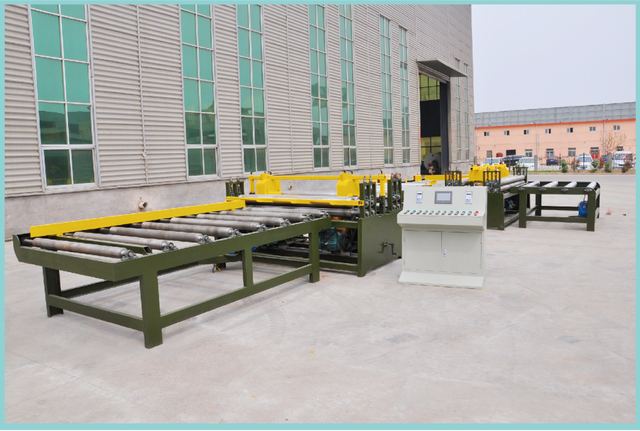

Full Automatic Roller Type Plywood Trimming Saw
Overview
Full Automatic Roller Type Plywood Trimming Saw supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Cutting Size 1220mm × 2440mm; Maximum Panel Thickness 60mm; Cutting Speed 0–30 meters per minute; Total Weight Approximately 6 tons. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Cutting Size | 1220mm × 2440mm |
|---|---|
| Maximum Panel Thickness | 60mm |
| Cutting Speed | 0–30 meters per minute |
| Total Weight | Approximately 6 tons |
| Diagonal Error Tolerance | Less than 0.05mm |
| Straightness Error Tolerance | Less than 0.05mm |
| Bearings | Japan-imported NSK |
| Lift Platform Motor | 1 × 3KW |
| Main Motors | Siemens Beide |
| Total Power | 37.68KW |
