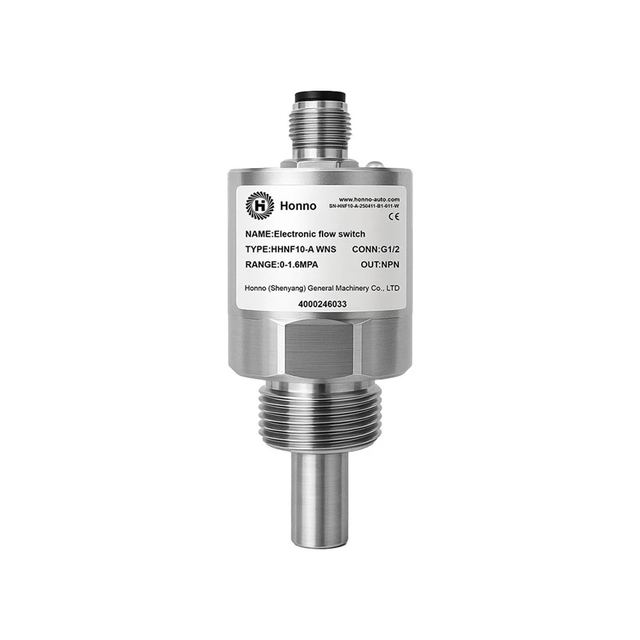

Flow Switch
Overview
Flow Switch, listed under Flow Switches by Hongnuo (shenyang) General Machinery Co., Ltd in Shenyang, Liaoning. Published figures include accuracy ±1~±10cm/s, settling time 3 minutes and pressure 100Bar.
Technical specifications
| Measure range | Water:3~300cm/s ; Air:200~300cm/s ; Oil:3~300cm/s |
|---|---|
| Accuracy | ±1~±10cm/s |
| Settling time | 3 minutes |
| Pressure | 100Bar |
| Media temperature | -20 to 80℃ |
| Thread | G1/2 ,G1/4 ,G1,M18*1.5 |
| Output signal | PNP / NPN / Relay /4-20mA |
| Power | 24VDC , 110VAC , 220VAC |
| Consumption current | <80mA |
| Setting | Button |
| Response time | 2(2-10)s |
| Max.temperature gradient of medium | 300K/min |
| Protect | Reverse / Short / Overload |
| Protection grade | Ip67 |
| Power connector | M12 with 1m cable |
| Material | Sensor : ANSI316L Body :ANSI316L |
| Load | Current : 250mA Relay : 30VDC/5A ,110VAC/5A, 220VAC/5A |
| Current | 250mA |
