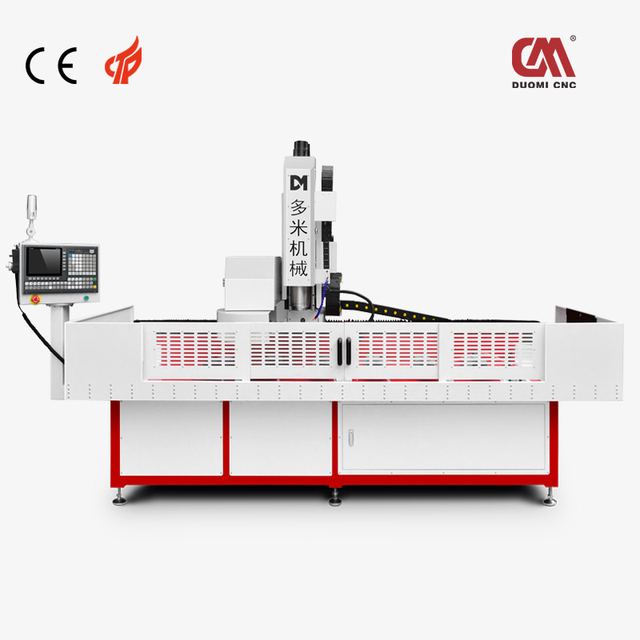

Flow Drill Machine for Automotive Components
Model DHM-3030N10
Overview
Flow Drill Machine for Automotive Components supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DHM-3030N10; Spindle taper hole BT30; Spindle power 5.5~7.5KW; X axis moving speed 30m/min~60m/min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DHM-3030N10 |
|---|---|
| Spindle taper hole | BT30 |
| Spindle power | 5.5~7.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Tapping range | M2~M16 |
| Chamfer range | 1~20mm |
| Tool magazine | Automatic tool change (10 knives) |
| Repeated positioning accuracy | ±0.02mm |
| Table size | 3000*380mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 2100KG |
| Floor space | 4500*2000*2000mm |
| Applications in Automotive Parts | EV battery trays and modules |
