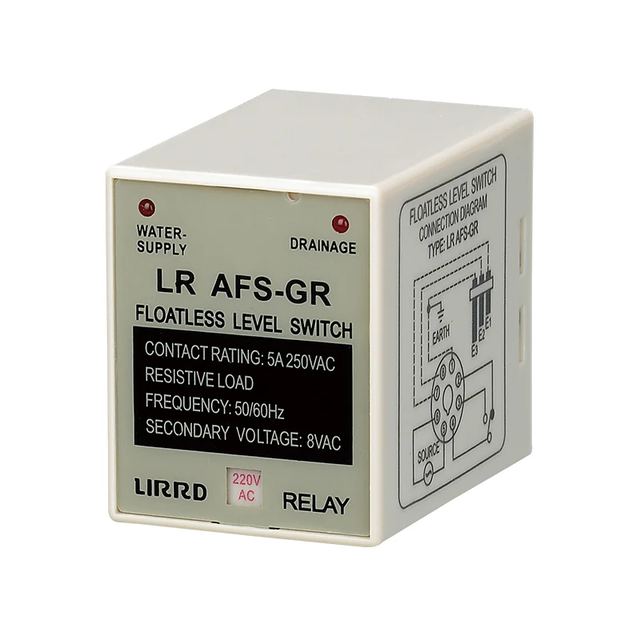

Floatless Level Switch
Overview
Floatless Level Switch supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Classification Floatless Relay; Socket Type PF083A PF085A; Rated Voltage AC:110V, 220V, 240V 50/60Hz; Operate Voltage 85~110% Of Rated Voltage. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Classification | Floatless Relay |
|---|---|
| Socket Type | PF083A PF085A |
| Rated Voltage | AC:110V, 220V, 240V 50/60Hz |
| Operate Voltage | 85~110% Of Rated Voltage |
| Electrode Voltage | 8VAC(Except Highsensing 24VAC) |
| Operate Resistance | 4KΩmin(general) |
| Release Resistance | 15KΩmin(general) |
| Contact Capacity | 5A, 250VAC(resistiveload) |
| Length Of Cable | 1KM max.(general) |
| Electrical | 105 times |
| Dielectric Strength | 1500VAC, 50/60Hz, For 1 Minute |
| Power Consumpting | 3.2VA |
| Ambient Temperature | -10~+55 °C |
| Ambient Humidity | 48~85%RH |
| Weight | 150g |
