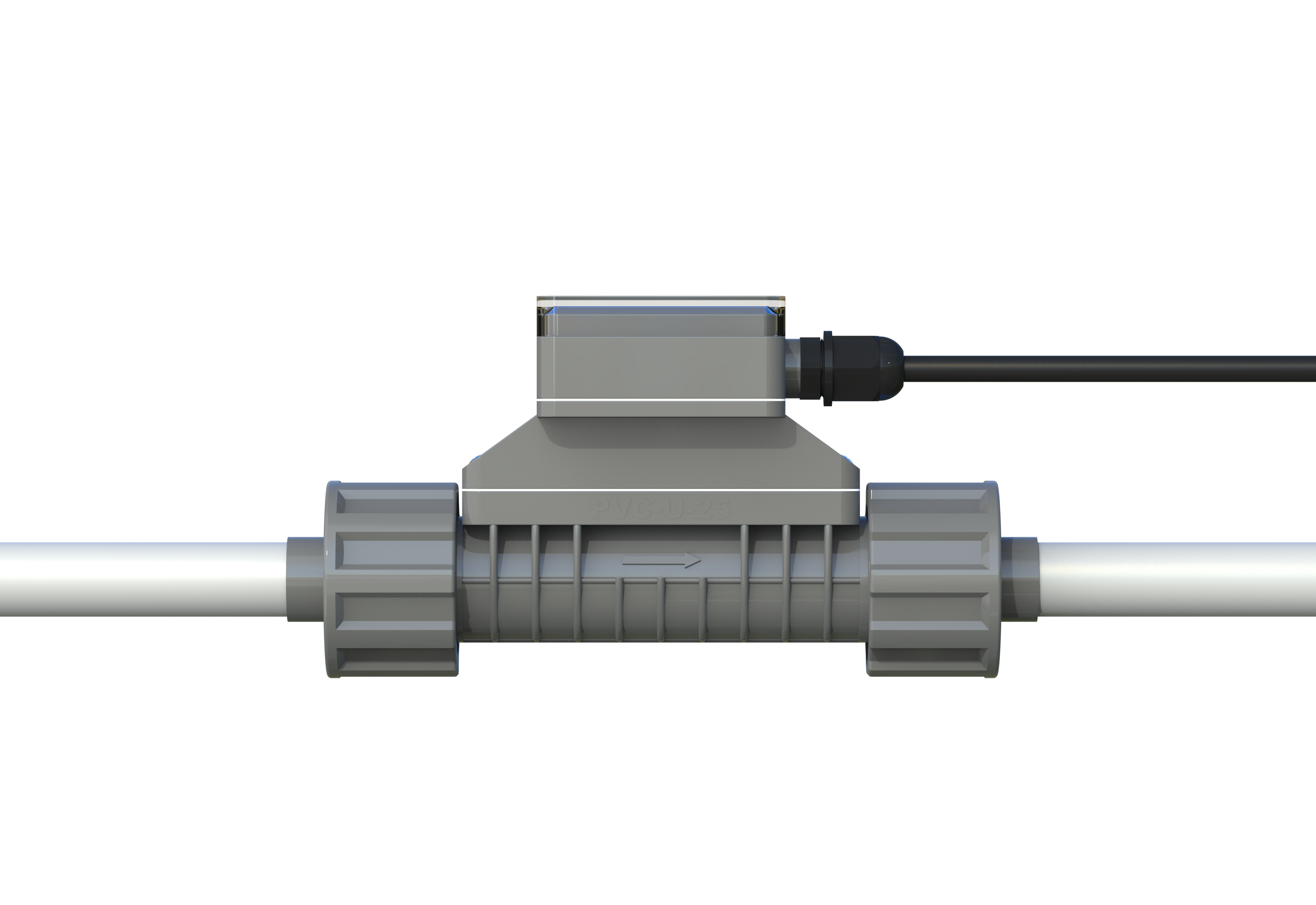

FL101 In-Line ultrasonic flow meter chilled water
Model FL101
Overview
Flo-Instruments Co., Ltd in Shenzhen, Guangdong lists FL101 In-Line ultrasonic flow meter chilled water under Water. Published figures include power supply 24V DC, communication interface RS485, Support Modbus RTU Protocol and flow range 0.1m/s ~ 10m/s.
Technical specifications
| Power Supply | 24V DC |
|---|---|
| Communication Interface | RS485, Support Modbus RTU Protocol |
| Flow Range | 0.1m/s ~ 10m/s |
| Pipe Diameter Range | OD20,OD25,OD32,OD40 |
| Display | 1.54’’ 240*240 IPS LCD 360° Rotation |
| Accuracy | ±1.0% (0.3m/s~5.0m/s) |
| Flow Velocity | 0.1m/s~10.0m/s |
| Linearity | ±1.0% (0.3m/s-5.0m/s) |
| Response Time | 500ms |
| Menu Language | Simplified Chinese/Traditional Chinese/English |
| Cumulative Data | 10 years 64 months 64 days |
| Operation Key | Four touch buttons |
| Calendar Battery | CR1220 |
| Analog Output | 4-20mA, maximum load 600Ω |
| Protection Level | IP66 |
| Pipe Size | OD20 (DN15-½"), OD25 (DN20-¾"), OD32 (DN25-1"), OD40 (DN32-1½") |
| Pipe Section Material | UPVC |
| Media Temperature | 0°C-60° |
| Working Temperature | -10°C-50°C |
| Ambient Humidity | Relative humidity 0%-95%, no condensation |
| Code | Output Mode |
| Certification | ISO:9001, CE |
