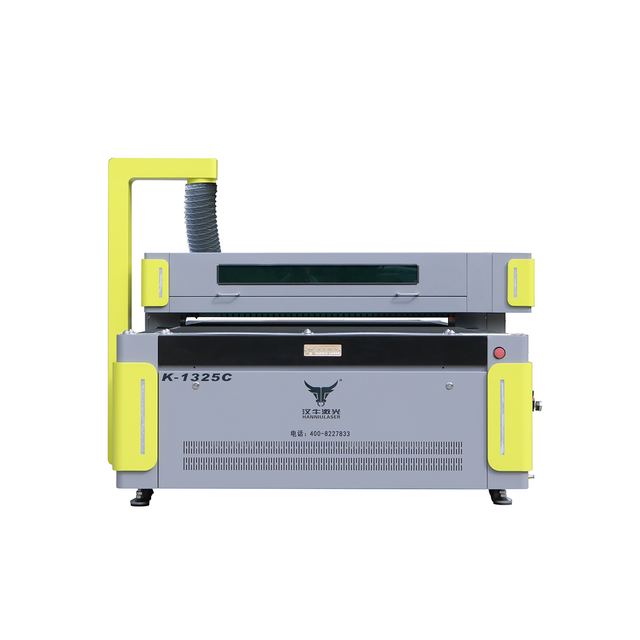

Factory CO2 Laser Cutting Machine For Acrylic Wood Engraving Support 150W
Model K1325
Overview
Factory CO2 Laser Cutting Machine For Acrylic Wood Engraving Support 150W supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Model K1325 CO2 laser cutting machine; Engraving Area 1300×2500mm; Engraving Speed 0-64000mm/min; Laser power 150W/300W/500W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | K1325 CO2 laser cutting machine |
|---|---|
| Engraving Area | 1300×2500mm |
| Engraving Speed | 0-64000mm/min |
| Laser power | 150W/300W/500W |
| Natural life of laser | 10000hours |
| Laser wave length | 10.6um |
| Resolution ratio | 0.025mm |
| Minimum shaping character | Chinese character 2mm/ letter 1mm |
| Resetting positioning accuracy | ±0.01mm |
| Power Supply | Ac220v±10%,50HZ |
| Gross Power | 2600w |
| Graphic Format Supported | BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
| Driver Type | Servo Motor |
| Opearate System | Win98/Win2000/WinXP |
| Max Cutting thickness | 10-30mm(acrylic) |
| Net Weight | 980gs |
| Dimension | 2800×2000×2200mm |
| Acrylic Cutting Thickness | Up To 30mm |
| Positioning Precision | ±0.001mm |
| Cooling | Water Colling |
| Cooling Method | Water Cooling |
| Operating Temperature | 0 - 45°C |
