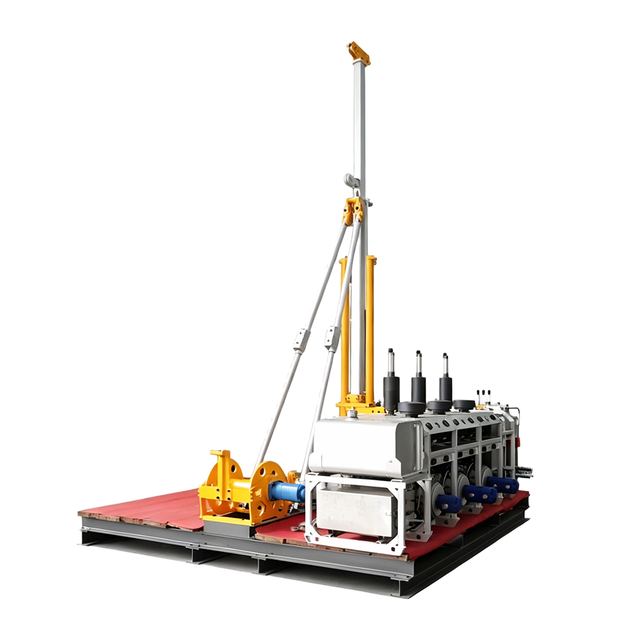

Exploration Core Drilling Rig
Overview
Exploration Core Drilling Rig supplied by D Miningwell. Key published specifications: Depth 400-800-1000 (M); Rated Flow Rate 200 (L/min); Heat Dissipation Method Water-cooled; Type Turbocharged. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Depth | 400-800-1000 (M) |
|---|---|
| Rated Flow Rate | 200 (L/min) |
| Heat Dissipation Method | Water-cooled |
| Type | Turbocharged |
| Rated Speed | 3000 (RPM) |
| Rated Power | 33 (kW) |
| Speed | 1300 (RPM) |
| Tower Type | Lightweight Galvanized Tower |
| Feed Stroke | 1900 (MM) |
| Lifting Force | 16 (T) |
| Feed Force | 8 (T) |
| Transmission Type | Direct-connected Box |
| Diameter of Steel Wire Rope | 6 (MM) |
| Rope Capacity | 900 (M) |
| Flow | 0-100 (L/MIN) |
| Pressure | 0-7 (MPa) |
| Heaviest Single Module Weight | 180±2.5 (KG) |
