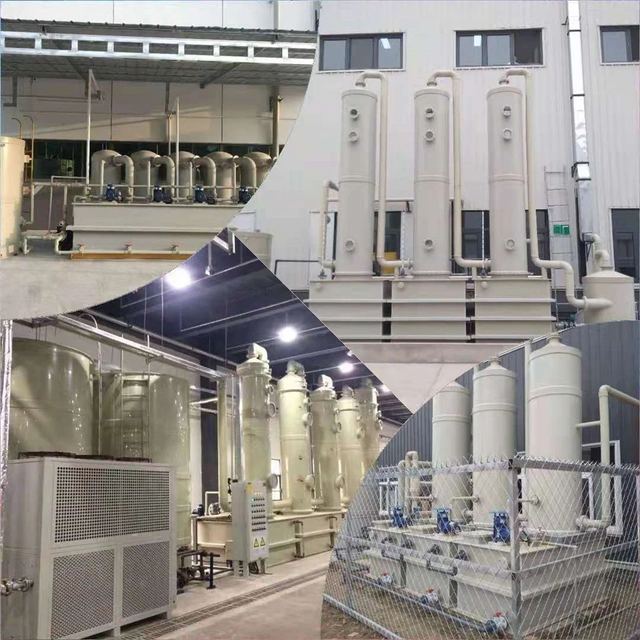

ETO GAS Scrubber
Overview
ETO GAS Scrubber supplied by Hangzhou Riches Engineering Co., Ltd. Key published specifications: Standard 0-80mg/m³ (GB16297-1996); Steam-water separator Φ600*1000mm ( SS304); Three stage circulating pump 2.2 kw(300L/min) FRPP; Rich liquid tank PP/GFRP. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Standard | 0-80mg/m³ (GB16297-1996) |
|---|---|
| Steam-water separator | Φ600*1000mm ( SS304) |
| Three stage circulating pump | 2.2 kw(300L/min) FRPP |
| Rich liquid tank | PP/GFRP |
| Rich liquid pump | 0.75kw(200L/min) FRPP |
| Poor liquid tank | 100-200L 316L |
| Poor liquid pump | 0.5kw(200-300L/h) PVDF |
| Induced draft fan | ≈500m³/h,≈1000pa 304/PP |
| Exhaust pipe | DN100 304 |
| Chillor | 10HP |
| Control system | 1 set |
| Temperature sensor | 0-100℃ 304/ PTFE |
| EG densitometer | PVC |
| Power supply | AC380V/220V 11.0kw-22kw 11.0kw |
| Pure water/deionized water | Temperature ≤32°C, pressure ≥0.2Mpa 0.5m³/h -1.5m³/h |
| Compressed air | ressure: 0.8Mpa≥P≥0.5Mpa |
| Term Of Delivery | FOB or EXW |
| Volume of reactor kettle | ≈10m³ |
