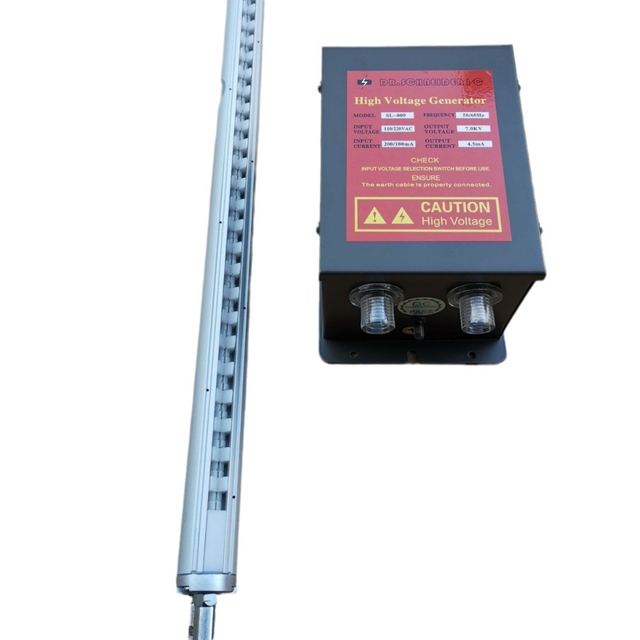

ESD Ionizing Bar
Model SL-040
Overview
ESD Ionizing Bar supplied by Shanghai Herzesd Industrial Co., Ltd. Key published specifications: Contacts Molly Li; Operating Voltage 7000V/50Hz Or 7000V/60Hz; Current Consumption 0.4uA; Working Distance 100mm（without Compressed Air） 800mm（with Compressed Air）. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contacts | Molly Li |
|---|---|
| Operating Voltage | 7000V/50Hz Or 7000V/60Hz |
| Current Consumption | 0.4uA |
| Working Distance | 100mm（without Compressed Air） 800mm（with Compressed Air） |
| Model | ST-040 |
| Compressed-air Pressure | 5~7Kg/cm2 |
| Testing Voltage | 5KV to 500V |
| Input Voltage | AC 110V / 220V |
| Output Voltage | ±5kV (customizable) |
| Length | 300mm–1500mm (custom available) |
| Operating Temperature | 0–50°C |
| Product Application / Use | PCB assembly lines |
