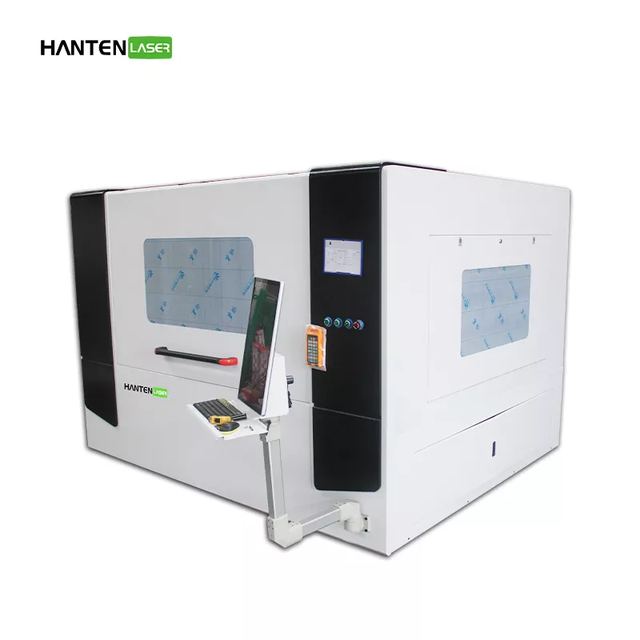

Enclosed CNC Fiber Laser Cutting Machine For Metal Sheet
Overview
Enclosed CNC Fiber Laser Cutting Machine For Metal Sheet supplied by HANTENCNC. Key published specifications: Laser Power 1000W/1500W; Fiber cable L 20M; Wavelength 1080nm; Beam quality ＜ 0.373mrad. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 1000W/1500W |
|---|---|
| Fiber cable L | 20M |
| Wavelength | 1080nm |
| Beam quality | ＜ 0.373mrad |
| Effective cutting range | 3000mm×1500mm |
| Axial positioning accuracy of the table | ≤±0.02500mm/m |
| Table repeatability accuracy | ≤±0.02mm/m |
| Cutting speed | ≤30m/min depending on the material |
| Workbench maximum load | 1800KG |
| Power rating parameters | Three-phase AC 380V 50Hz |
| Equipment power consumption | 25-40KW |
| Overall power protection level | IP54 |
