Overview

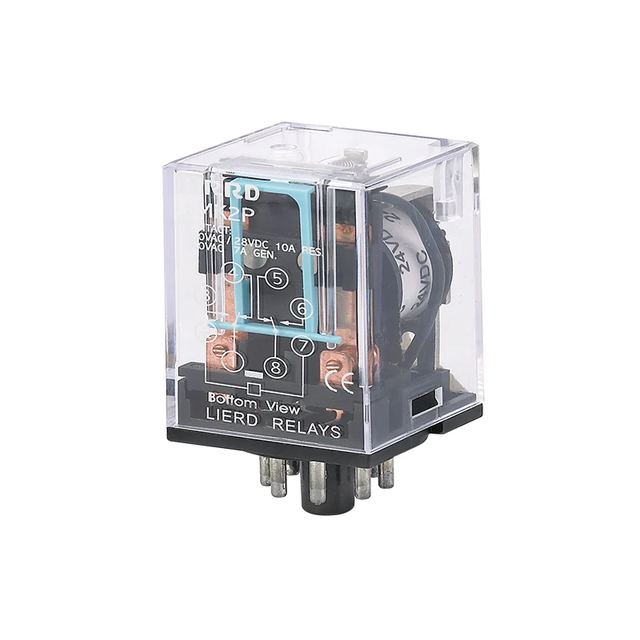

Electromagnetic Relay LMK-2P supplied by Zhejiang Lierd Relays Enterprise Co., Ltd. Listed under Relays. Key published specifications: Contact Form 2Z 2H 2D; Contact Material Silver Alloy; Resistance Performance Of Contactor Capacity 10A/28VDC, 10A/250VAC; Ac(Va) ≤2.5VA. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Contact Form	2Z 2H 2D
Contact Material	Silver Alloy
Resistance Performance Of Contactor Capacity	10A/28VDC, 10A/250VAC
Ac(Va)	≤2.5VA
Ac(V)	6~380V
Pick-up Voltage at 23°C	DC≤75% AC≤80%
Drop-out Voltage at 23°C	DC≥10% AC≥30%
Contacts Pieces	≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts	≥1500VAC 50Hz/1min Leakage Current 1mA
Mechanical	10^6 Times(Frequency:300 Times/1min)
Ambient Temperature	-25°C ~ +55°C
Terminal Type	Insert Type
Same Reference	JTX Universal
10^5 Times(Frequency	On 1 Time/1S,Off 1 Time/1S)
10^6 Times(Frequency	300 Times/1min)
