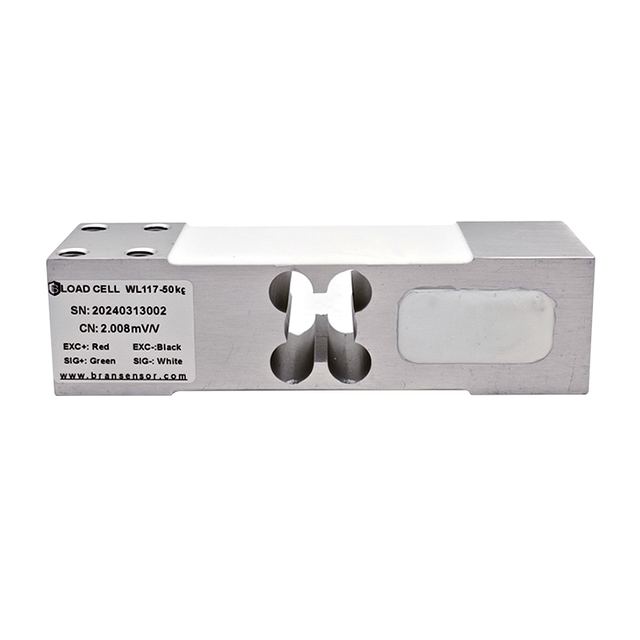

Electromagnetic Load Cell
Model WL-117
Overview
Electromagnetic Load Cell supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Load Capacity 50/100/150/200/250/300/400/500kg; IP Class IP65 (Customizable); Repeatability 0.015%F.S.; Rated Output 2.0±0.05mV/V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load Capacity | 50/100/150/200/250/300/400/500kg |
|---|---|
| IP Class | IP65 (Customizable) |
| Repeatability | 0.015%F.S. |
| Rated Output | 2.0±0.05mV/V |
| Cable Size | Φ5×3000mm (Customizable) |
| Product Structure | Single Point |
| Nominal Displacement | 0.6-0.9mm |
| Recommended Excitation | 5-15V |
| Material | Aluminum Alloy |
| Capacity | 50/100/150/200/250/300/400/ 500kg |
| Accuracy class | (C3/C4 optional) |
| Combined error | ±0.015%F.S. |
| Zero balance | ±0.02mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Temperature effect on sensitivity | ±0.008%F.S./10℃ |
| Temperature effect on zero | ±0.0125%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100VDC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
