Overview

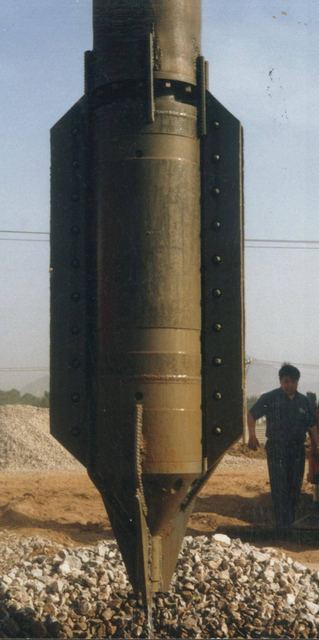

Electrical Vibroflot Waterproof Sealed Motor for Land Reclamation Stone Column Construction supplied by APIE FOUNDATION EQUIPMENT （CHINA）LIMITED. Listed under Drilling Rigs. Key published specifications: Vibration Force 195 Kg; Rate Current 195 A; Diameter of the Length Work Pile 1000-1200 Mm; Motor Power 100 KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Vibration Force	195 Kg
Rate Current	195 A
Diameter of the Length Work Pile	1000-1200 Mm
Motor Power	100 KW
Length	2885 Mm
External Diameter	426 Mm
Weight	2170 Kg
Max. Amplitude	17 Mm
Max. Speed	1450 R/min
Certification	ISO and CE certificate
Technical Parameters	Product Name
