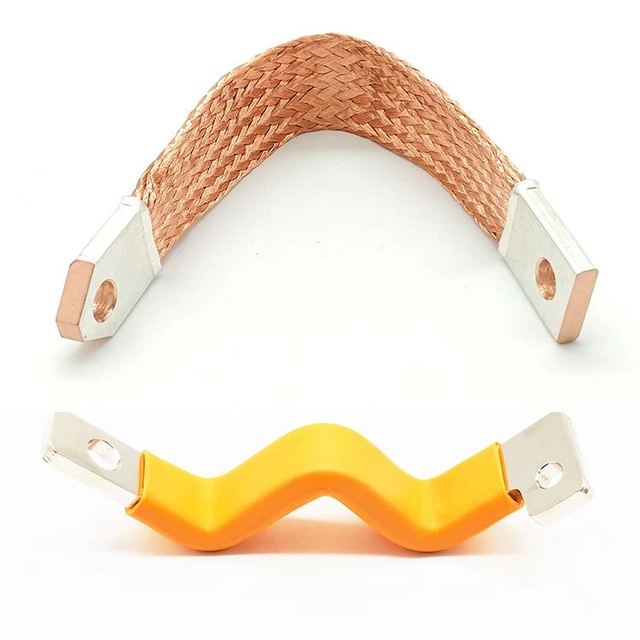

Electrical Busbar
Overview
Electrical Busbar, listed under Busbars by Apollo Electronic Components (Xiamen) Co.,Ltd in Xiamen, Fujian. Published figures include conductor material Copper (Cu) / Aluminum (Al), material grade ETP Copper (Cu-ETP, ≥99.9%) / EC Aluminum and cross-section shape Flat / Round / Laminated.
Technical specifications
| Conductor Material | Copper (Cu) / Aluminum (Al) |
|---|---|
| Material Grade | ETP Copper (Cu-ETP, ≥99.9%) / EC Aluminum |
| Cross-Section Shape | Flat / Round / Laminated |
| Thickness Range | 2 – 20 mm (Customizable) |
| Width Range | 10 – 200 mm (Customizable) |
| Short-Time Withstand Current | Up to 100 kA / 1 s |
| Operating Temperature | -40 °C to +105 °C |
| Temperature Rise | ≤ 65 K (IEC Standard) |
| Electrical Conductivity | ≥ 99% IACS (Copper) |
| Insulation Voltage | Up to 3 kV |
| Flame Retardancy | UL94 V-0 (Optional) |
| Installation Method | Bolted / Welded / Plug-in |
| Mounting Orientation | Horizontal / Vertical |
| Bending & Punching | CNC Bending and Punching Available |
| Environmental Protection | RoHS / REACH Compliant |
| Quality Control | 100% Dimensional and Electrical Inspection |
| Selling units | Single item |
| Single gross weight | 20.000kg |
