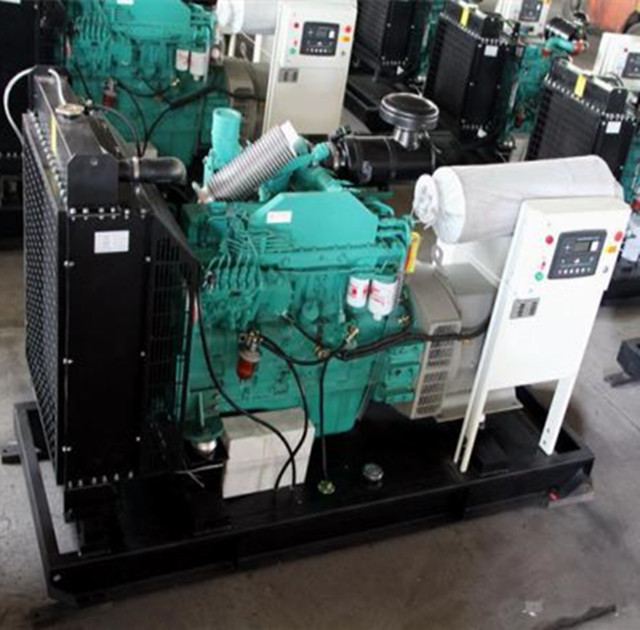

Electric Start Cummins Industrial Generator Power ATS 48kw supplied by Shenzhen Genor Power Equipment Co., Ltd. Listed under Generator Set. Key published specifications: Certification ISO9001:2008, CE; Alternator Stamford, Leroy somer ,Marathon,Engga; Control Panel Smartgen, Deepsea,ComAp; Rated Power 66kva. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO9001:2008, CE
Alternator	Stamford, Leroy somer ,Marathon,Engga
Control Panel	Smartgen, Deepsea,ComAp
Rated Power	66kva
Rated RPM	1500rpm or 1800rpm
Frequency	50Hz or 60Hz
Rated Voltage	120v/208v,220V/380V, 240V/415V
Genset Model	GNRC60
Rated Output	48Kw/60Kva
Standby Output	52.8Kw/66Kva
Speed	1500rpm/1800rpm
Type	3phase 4wire
Protect Class	IP23
Starting system	Electric starting
Diesel engine Model	4BTA3.9-G2
Engine Speed	1500rpm
Prime Power	50Kw
Stamdby Power	55Kw
Air intake way	Turbo& After cooled
Bore*Stroke	102*120mm
Governor	Machanical
Fuel Consumption	216g/kw.h
Cooling Way	Water-Cooled
Cummins Diesel Genset Model	GNRC66
Voltage	220V/380V 230V/400V
Genset Features	1. Genuine Commins industrial diesel engine
Engine Features	1. Genuine Cummins industrial diesel engine
Controller Brand	Smartgen, Deepsea,ComAp
