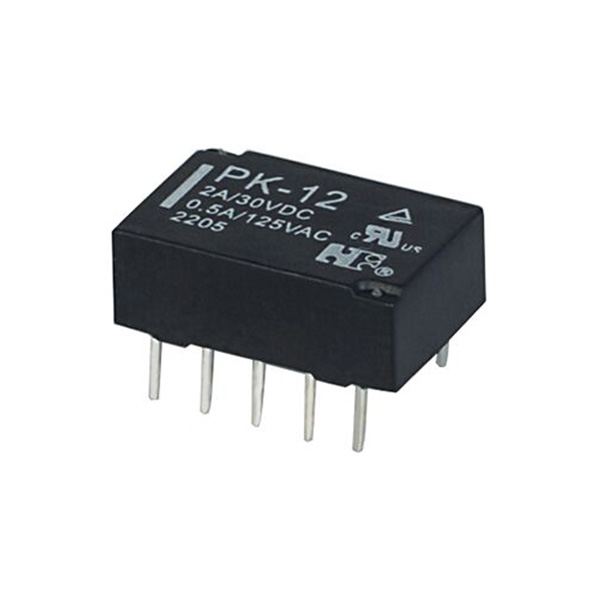

Dual Coil Latching Relay
Overview
Ningbo Forward Relay Corp., Ltd in Ningbo, Zhejiang lists Dual Coil Latching Relay under Relays. Published figures include contact arrangement 2C(DPDT(B-M)) (Bifurcated Crossbar), contact material AgPd(Au plated ) AgNi(Au plated) and contact rating (resistive) 1A,2A/30VDC; 0.5A/125VAC.
Technical specifications
| Contact Arrangement | 2C(DPDT(B-M)) (Bifurcated Crossbar) |
|---|---|
| Contact Material | AgPd(Au plated ) AgNi(Au plated) |
| Contact Rating (Resistive) | 1A,2A/30VDC; 0.5A/125VAC |
| Max. Switching Power | 60W 62.5VA Min. Switching Load 0.01mA/10mV(Reference Value) |
| Max. Switching Voltage | 220VDC 250VAC Max. Swit ching Current:2A |
| Contact Resistance | ≤50mΩ Item 4.12 of IEC 61810-7 |
| Mechanical | 1×10 8 Item 4.31 of IEC 61810-7 |
| Model | PK |
| 2 Operating function | NIL: Single Side Stable |
| 3 Coil rated voltage(V) | DC:3,4.5,5,6,9,12,24 |
| 4 Contact material | NIL: AgPd W: AgNi |
| Max. Swit ching Current | 2A |
