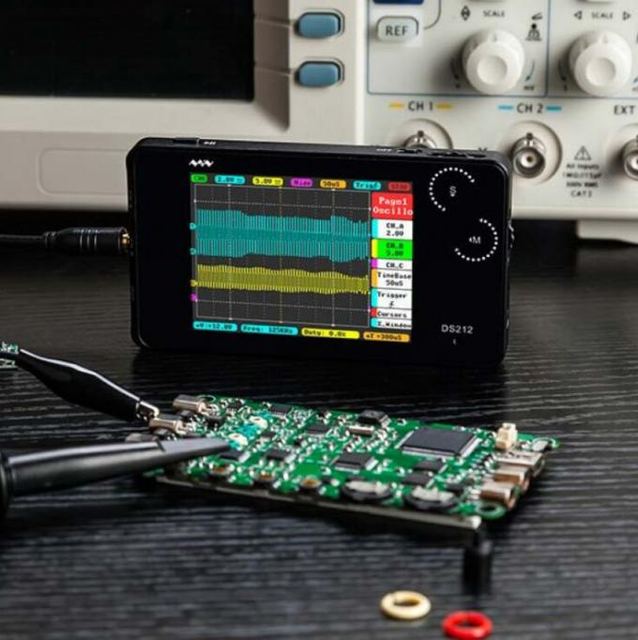

DS212 Mini DSO 10MSa/s 1MHZ 2 Channel Handheld Portable Digital Storage Oscilloscope
Model DS212
Overview
DS212 Mini DSO 10MSa/s 1MHZ 2 Channel Handheld Portable Digital Storage Oscilloscope supplied by SHENZHEN G-SUN OPTOELECTRONICS CO.,LTD. Listed under Batteries. Key published specifications: Certification CE ,FCC; Max Sample Rate 10MSa/s; Analog Bandwidth 1MHz; Max Sample Memory Depth 8K. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE ,FCC |
|---|---|
| Max Sample Rate | 10MSa/s |
| Analog Bandwidth | 1MHz |
| Max Sample Memory Depth | 8K |
| Coupling | AC/DC |
| Operation | Button, Encoder |
| MCU | STM32F303VC |
| Horizontal Sensitivity | 1uS/Div~2S/Div(1-2-5 sequence step) |
| Vertical Sensitivity | 20mv/Div~10V/Div(1-2-5 sequence step) |
| Synchronous Mode | Auto, Normal, Single, Scan, None |
| Open Source | Application Layer Open-Source |
| Data Transfer Interface | Micro USB Port |
| Storage | 8MB USB Flash Disk Memory |
| Net Weight | 88g (with Battery) |
| Battery | 500mAh |
| Dimension | 100mm x 56.5mm x 10.7mm |
| Main Parameters | Operation |
