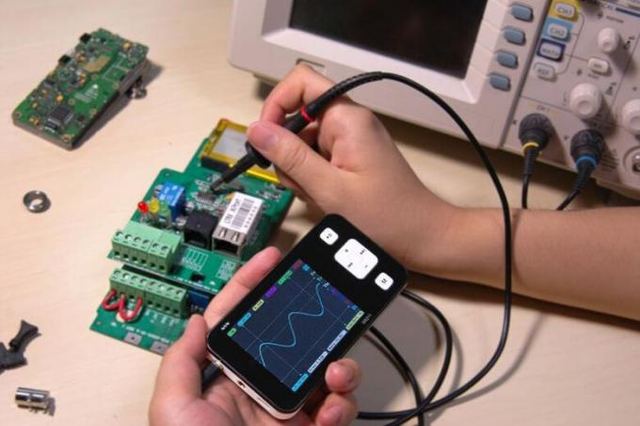

DS211 Mini 2.8" 2 Channel 1MSa/s 200KHz Bandwidth Digital Oscilloscope For Electronic Devices
Model DS211
Overview
DS211 Mini 2.8" 2 Channel 1MSa/s 200KHz Bandwidth Digital Oscilloscope For Electronic Devices supplied by SHENZHEN G-SUN OPTOELECTRONICS CO.,LTD. Listed under Batteries. Key published specifications: Certification CE ,FCC; Max Sample Rate 1MSa/s; Analog Bandwidth 200KHz; Max Sample Memory Depth 8K. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE ,FCC |
|---|---|
| Max Sample Rate | 1MSa/s |
| Analog Bandwidth | 200KHz |
| Max Sample Memory Depth | 8K |
| Coupling | AC/DC |
| Operation | Button |
| MCU | STM32F103VC |
| Channels | 1 Analog Channel |
| Horizontal Sensitivity | 1uS/Div~2S/Div. (1-2-5sequence step) |
| Vertical Sensitivity | 20mv/Div~10V/Div. (1-2-5sequence step) |
| Synchronous Mode | Auto, Normal, Single, Scan |
| Open Source | Application Layer Open-Source |
| Data Transfer Interface | Micro USB Port |
| Storage | 8MB USB Flash Disk Memory |
| Screen Resolution | 320 x 240 |
| Net Weight | 66g (with Battery) |
| Battery | 500mAh |
| Dimension | 106.5mm x 55.7mm x 11.5mm |
| Main Parameters | Operation |
