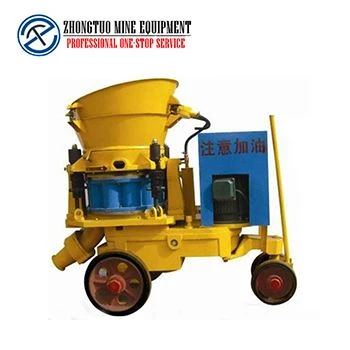

Dry Mix Shotcrete
Model PZ-5
Overview
Dry Mix Shotcrete supplied by Shaanxi Zhongtuo Mine Equipment Co.,Ltd. Key published specifications: Jet capacity 5.5/h; Maximum transmission distance 200m; The maximum aggregate size 15mm; Feed pipe diameter φ 50mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Jet capacity | 5.5/h |
|---|---|
| Maximum transmission distance | 200m |
| The maximum aggregate size | 15mm |
| Feed pipe diameter | φ 50mm |
| Working pressure | 0.2-0.6MPa |
| Air consumption | 7-8/min |
| Drive power | 5.5kW(7.5hp) |
| Voltage level | 380V,440V,660V,1140V 50Hz/60Hz |
