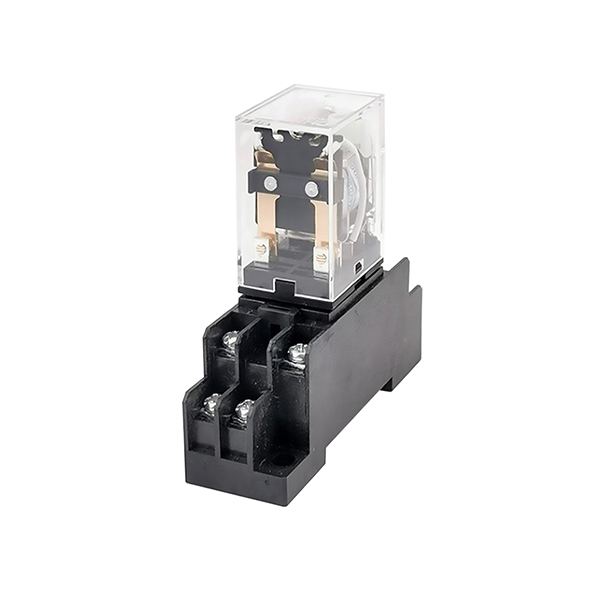

DPDT Electromagnetic Relay
Model ATO-EMR-HH52P/62P
Overview
DPDT Electromagnetic Relay, listed under Relays by ATO Relays in Guilin, Guangxi. Published figures include terminal type plug in, contact form DPDT (double pole double throw) and contact material silver alloy.
Technical specifications
| Terminal Type | plug in |
|---|---|
| Contact Form | DPDT (double pole double throw) |
| Contact Material | silver alloy |
| Coil Power | DC≤0.9W, AC≤1.2VA |
| Pick-up Voltage at 23 ℃ | DC≤75%, AC≤80% |
| Drop-out Voltage at 23 ℃ | DC≥10%, AC≥30% |
| Leakage Current | ≤1 mA |
| Insulation Resistance | ≥500 MΩ at 500V DC |
| Mechanical Service Life | 10 6 Times (frequency: 300 Time/1 min) |
| Dimension | 27×21×35 mm |
| 10 5 Times (frequency | on 1 time/1s, off 1 time/1s) |
| 10 6 Times (frequency | 300 Time/1 min) |
| DPDT Electromagnetic Relay Dimension | (Unit: mm) |
