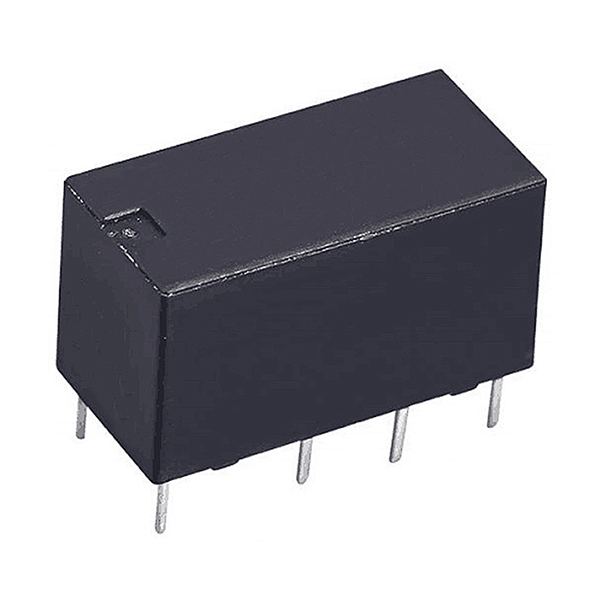

DPDT DC Signal Relay
Overview
DPDT DC Signal Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Contact Material AgNi + Gold Plating; Rated Load (Resistance Load) 1A 125VAC; Max. Switching Voltage 250VAC30VDC; Max. Switching Current 2A. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Contact Material | AgNi + Gold Plating |
|---|---|
| Rated Load (Resistance Load) | 1A 125VAC |
| Max. Switching Voltage | 250VAC30VDC |
| Max. Switching Current | 2A |
| Max. Switching Capacity | 125VA/60W |
| Min. Allowing Load | 10mV 10μA |
| Insulation Resistance (Initial) | 1000mΩ (500VDC) |
| Vibration Resistance | 10Hz ~ 55Hz 1.5mm DA |
| Humidity | 5% to 90% |
| Unit Weight | 5g |
| Certification | CE, CCC, TUV, UL |
| Dimension (Unit | mm) |
