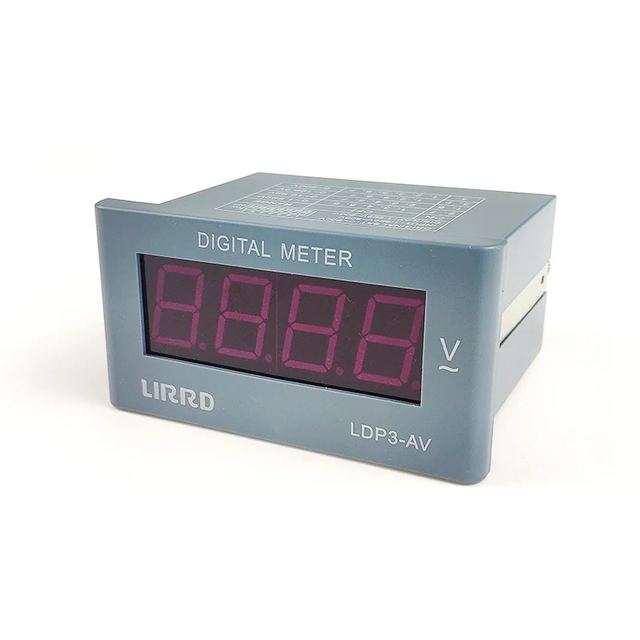

DP3 LED Display AC Digital Voltmeter
Overview
DP3 LED Display AC Digital Voltmeter, listed by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Classification Amperemeter & Voltmeter, max. display 1999(AC display valid value) and input mode single input (Less than 700V for AC Voltmeter) are among the specifications published.
Technical specifications
| Classification | Amperemeter & Voltmeter |
|---|---|
| Max. Display | 1999(AC display valid value) |
| Input mode Single input | (Less than 700V for AC Voltmeter) |
| A/D conversion | Double intergral |
| Measuring Speed | 2.5times/S |
| Frequency Range | 40~200Hz( only for AC) |
| Overflow Display | "1" or "-1" |
| Polarity Display | only "-" (just for DC) |
| Display | 0.80 inch Red(color:Green, Yellow, Blue) |
| Power | 110/220VAC |
| Comsuption | ≤4.5VA |
| Accuracy | 0.5%FS±1 |
| Dielectric Strength | AC1500V / M (Between Power and external terminals) |
