Overview

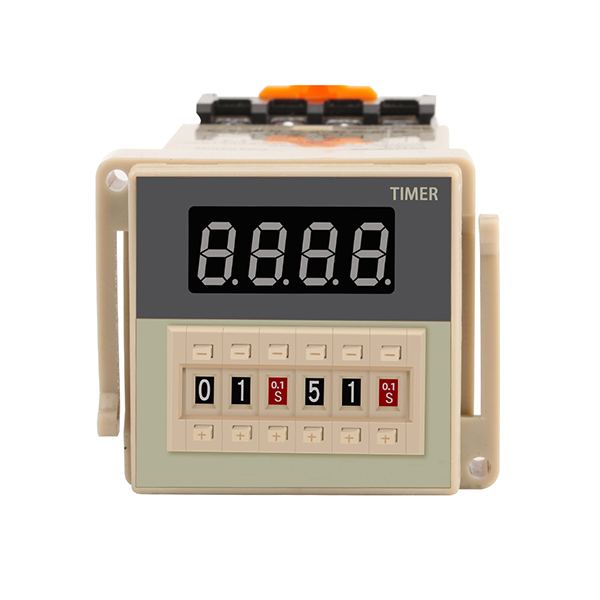

Digital Timer Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Dimension 48mm (H) × 48mm (W) × 81.6mm (D); Flush (-y) US-08, P3G-08; Full Timing Range 0.01S~990H; Display LED. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Dimension	48mm (H) × 48mm (W) × 81.6mm (D)
Flush (-y)	US-08, P3G-08
Full Timing Range	0.01S~990H
Display	LED
Electrical	10 5 times
Setting Error	±0.5% max
Voltage Error	±0.5% max
Temp Error	±0.5% max
Reset Time	0.1 sec max
Consumed Power	2VA
Ambient Humidity	48~85%RH
Weight	160g
Certification	CE, CCC, TUV, UL
