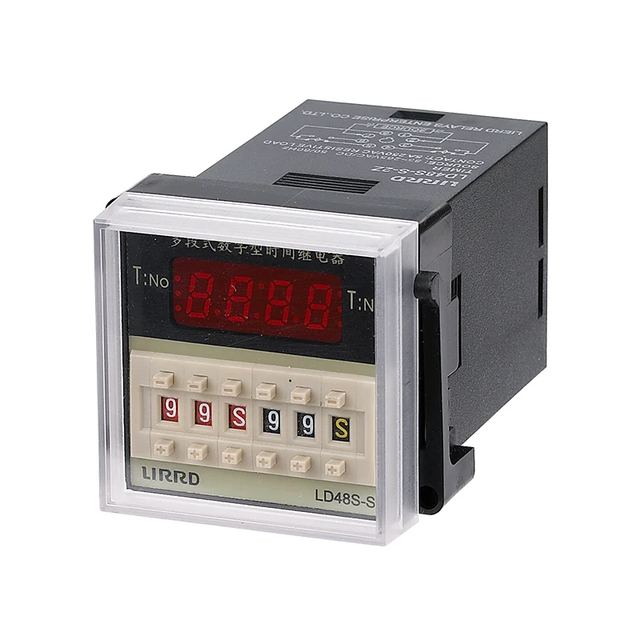

Digital Time Relay LD48S-S
Overview
Digital Time Relay LD48S-S, listed under Relays by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Time limit range 1-99 Times Time Limit Multiplying Factor, power consumption Less Than 4.5W and contact capacity Impedance Load: Max 5A/250VAC or 5A/28VDC are among the specifications published.
Technical specifications
| Time Limit Range | 1-99 Times Time Limit Multiplying Factor |
|---|---|
| Rated Working Voltage | 85~265VAC/DC input free, other voltage upon request |
| Power Consumption | Less Than 4.5W |
| Contact Capacity | Impedance Load: Max 5A/250VAC or 5A/28VDC |
| Operating Enviroment | Ambient Temperature: -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
| Impedance Load | Max 5A/250VAC or 5A/28VDC |
| Ambient Temperature | -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
