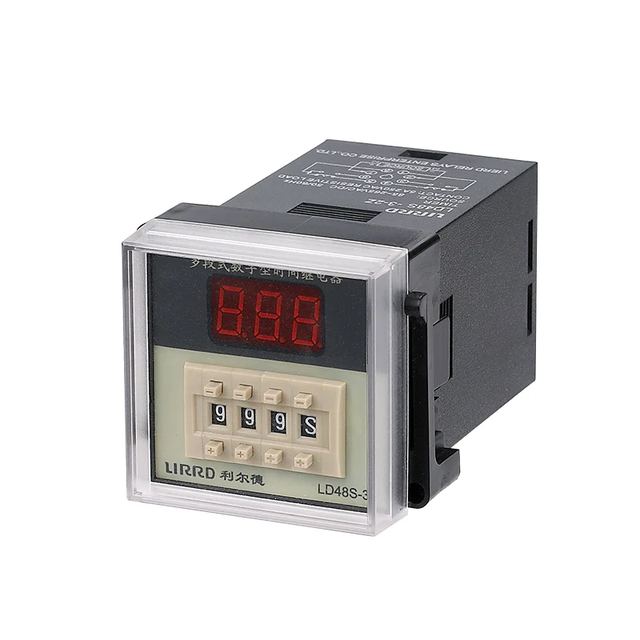

Digital Time Relay LD48S-3 2Z
Overview
Digital Time Relay LD48S-3 2Z, listed under Relays by Zhejiang Lierd Relays Enterprise Co., Ltd in Wenzhou, Zhejiang. Class MultiplexType Preset Time Limit Relay, delay base 1Ms 0.01Sec 1Sec 1Min 1HR 1Min/Sec 1HR/Min and embedded type Y-50& US-08 or Y-50& P3G-08 are among the specifications published.
Technical specifications
| Class | MultiplexType Preset Time Limit Relay |
|---|---|
| Delay Base | 1Ms 0.01Sec 1Sec 1Min 1HR 1Min/Sec 1HR/Min |
| Rated Working Voltage | 85~265VAC/DC input free, other voltage upon request |
| Embedded Type | Y-50& US-08 or Y-50& P3G-08 |
| Power Consumption | ≤4.5VA |
| Operating Enviroment | Ambient Temperature: -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
| Weight | About 103g |
| Ambient Temperature | -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH |
