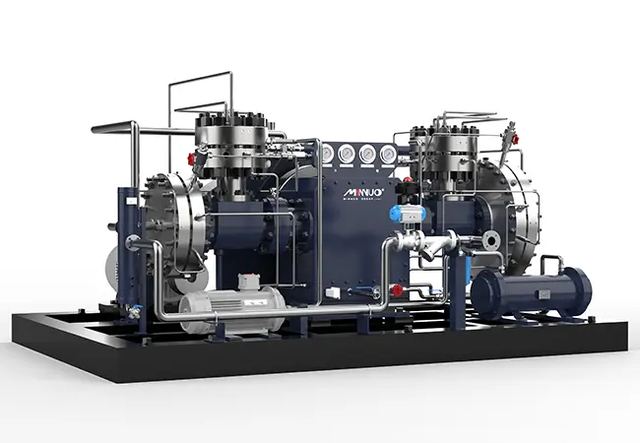

Diaphragm Compressor
Overview
Diaphragm Compressor, listed by Minnuo Compressor in Jingjiang, Jiangsu. Flow-rate range 3~3000Nm3/h, max.discharge pressure 14500psi(100MPa) and max.piston force 250kN are among the specifications published.
Technical specifications
| Flow-Rate Range | 3~3000Nm3/h |
|---|---|
| Max.Discharge Pressure | 14500psi(100MPa) |
| Max.Piston Force | 250kN |
| Max. drive power | 600hp(450kw) |
| Gas Type | H2、N2、O2、He、Ar、Xe、Ke、HCl、H2S、C2H4、HF、SiF4、SiH4、NF3，etc. |
| Crosshead | 32000h Connecting rod bolt: 16000h |
| Structure | Z, L, P, D-type |
| Oil type | compulsory oil supplement |
| Cooling way | water cooled or air cooled |
| Maintenance maximum weight per piece | 80kg |
