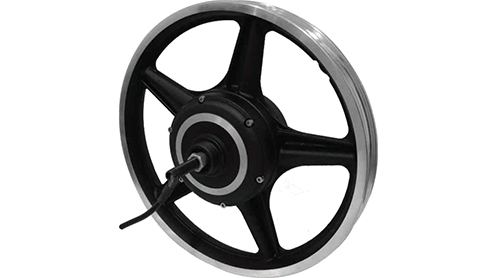

DGW07-R16 Ebike Brushless Motor
Overview
DGW07-R16 Ebike Brushless Motor supplied by Suzhou Shengyi Motor Co., Ltd. Key published specifications: Driving position Rear; Wheel size 16in; Rated power 250W; Rated voltage 24V~36V~48V. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Driving position | Rear |
|---|---|
| Wheel size | 16in |
| Rated power | 250W |
| Rated voltage | 24V~36V~48V |
| Max.torque | ≥40N.m |
| Cable side | Left |
| Installation dimension | 145mm |
| Hall sensor | With/Without |
| Free wheel | Screw 6-7S |
| Classification of waterproof | IPX5 |
| Weight | 4.0Kg |
