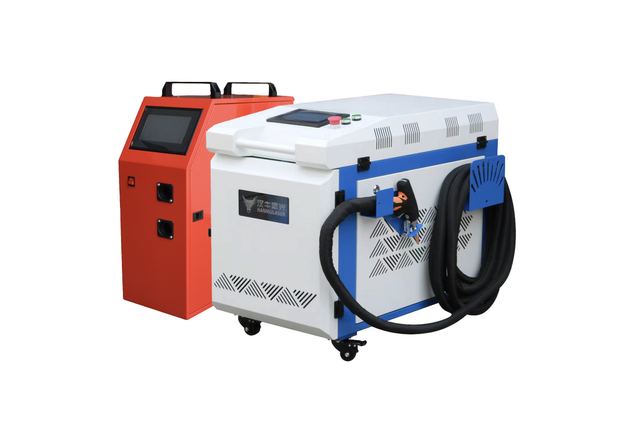

DFW Series Compact Fiber Laser Welding Machine
Model 4 in 1 handle welding machine
Overview
DFW Series Compact Fiber Laser Welding Machine supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Laser Power 1000W / 1500W / 2000W / 3000W (optional); Laser Wavelength 1064nm – 1080nm ± 10nm; Working Mode Continuous / Modulated; Fiber Cable Length 5m – 15m (standard 10m). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Power | 1000W / 1500W / 2000W / 3000W (optional) |
|---|---|
| Laser Wavelength | 1064nm – 1080nm ± 10nm |
| Working Mode | Continuous / Modulated |
| Fiber Cable Length | 5m – 15m (standard 10m) |
| Input Power | Single-phase AC 220V ± 10% |
| Welding Thickness | 0.5mm – 8mm (stainless steel/carbon steel) |
| Wobble Width | 0 – 5mm (adjustable) |
| Cleaning Scanning Width | Up to 35mm |
| Machine Weight | 55kg – 125kg (depending on model) |
| Certification | CE、FDA |
