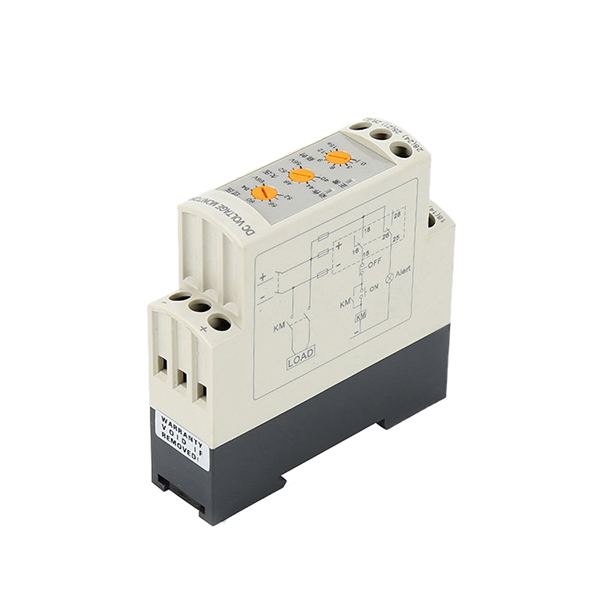

DC Voltage Monitoring Relay
Overview
DC Voltage Monitoring Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Measuring Circuit DC circuit; Monitoring Functions Overvoltage, Undervoltage; Trip Delay Time 0.1-15s adjustable; Voltage Hysteresis 3-5% fixed. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Measuring Circuit | DC circuit |
|---|---|
| Monitoring Functions | Overvoltage, Undervoltage |
| Trip Delay Time | 0.1-15s adjustable |
| Voltage Hysteresis | 3-5% fixed |
| Output Contacts | 2 C/O |
| Contact Capacity | 6A, 250V AC (resistive load) |
| Degree of Protection | IP 20 |
| Humidity | ≤85%RH, non-condensing |
| Mechanical Durability | 1,000,000 cycles |
| Dielectric Strength | ＞2kVAC 1min |
| Power Consumption | ≤2W |
| Mounting | 35mm DIN rail |
| Weight | 130g |
| Dimensions (H*W*D) | 79*23*79mm |
| Dimension | (Unit: mm) |
